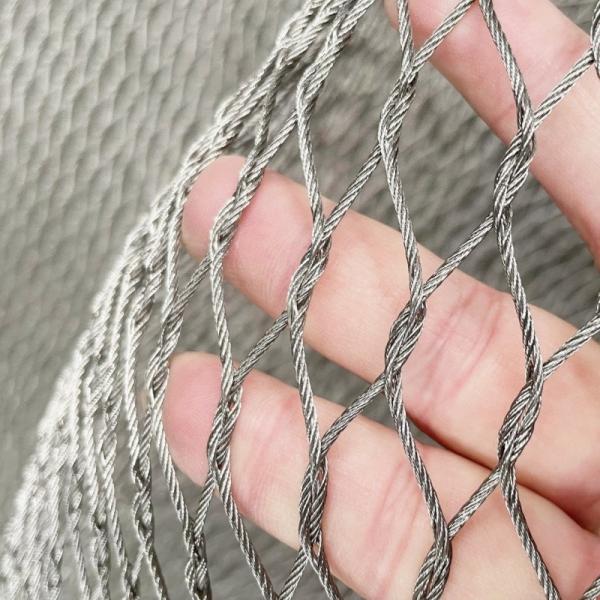

Stainless Steel Knotted Rope Mesh
Quick details of Stainless Steel Knotted Rope Mesh
Material: SUS302, 304, 316, 316L
Wire diameter: 1.0mm-3.0mm
Structure:7*7,7*19.
Mesh Opening Size:1"*1",2"*2",3"*3",4"*4".
Description of Stainless Steel Knotted Rope Mesh
Knotted rope mesh is a kind of plain weave, each warp wire rope
crosses alternately above and below each weft wire rope. Warp and
weft wire ropes generally have the same diameter.
Knotted rope mesh netting is made following a traditional process,
beginning with either a monofilament or multifilament twine. The
strands are twisted together to varying degrees, depending on the
level of thickness required.
Stainless steel wire ropes are commonly used in structures 7x7 and
7x19. The materials are 304, 316, 304L, 316L. Secondly, we can also
provide hot-dip galvanized steel wire rope products.
Specification of Stainless Steel Knotted Rope Mesh
Cable diameter
| Mesh opening size
| Nominal break
|
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270
|
Application of knotted rope mesh
Stainless steel knotted rope mesh is used widely in zoo fences,
animal fences, animal cages, bird cage construction, marine parks,
garden protection construction, park beautification and green
decoration, safari, bridges, stadium fences, supermarkets,
airports, exhibition halls, acrobatics, opera houses, film and
television props, municipal construction, playground use, metal
curtain wall, indoor and outdoor architectural decoration,
protective engineering, etc. It is an ideal choice for modern
decoration and protection.
