3 Series Electrochemical Gas Hydrogen H2 Sensor For Hydrogen Detector H2 Concentration Tester Maximum Overload 20 000ppm

Product Description:

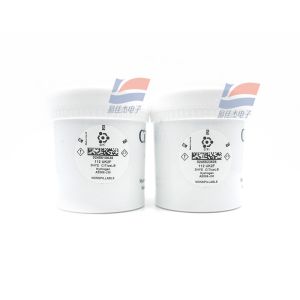

3HYE AE006-J30 3 Series Electrochemical Gas Hydrogen H2 Sensor For Hydrogen Detector H2 Concentration Tester

Features:

Nominal Range:0-10 000ppm

Maximum Overload:20 000ppm

Expected Operating Life:Two years in air

Output Signal:0.003 ± 0.001 µA/ppm

Resolution:10ppm

Temperature Range:-20°C to +50°C

Pressure Range:Atmospheric ± 10%

Pressure Coefficient:0.006 % signal/mBar

T90 Response Time:<70 seconds

Relative Humidity Range:15 to 90% non-condensing

Typical Baseline Range:+2 to -150ppm equivalent

(pure air)

Maximum Zero Shift:-150ppm equivalent

(+20°C to +40°C)

Long Term Output Drift:<2% signal loss/month

Recommended Load:10 W

Resistor

Bias Voltage:Not required

Repeatability:2% of signal

Output Linearity:Linear

Specifications:

Yijiajie Electronics is a full range of silicon pressure sensors from the United States, FREESCALE/, GE, MEAS, SMI, and a full range of sensing and control products from the United States pressure, temperature and humidity, gas flow, current, Hall effect, etc., Japan HAMAMATSU flame, UV sensors, photodiodes, Japan FIGARO, UK CITY, ALPHASENSE full range of semiconductors, catalytic, electrochemical gas sensors, French HUMIREL/MEAS humidity sensors and other international well-known companies authorized agents or distributors, to provide customers with product information, products Solutions, product selection, supply guarantee and logistics services, etc.
