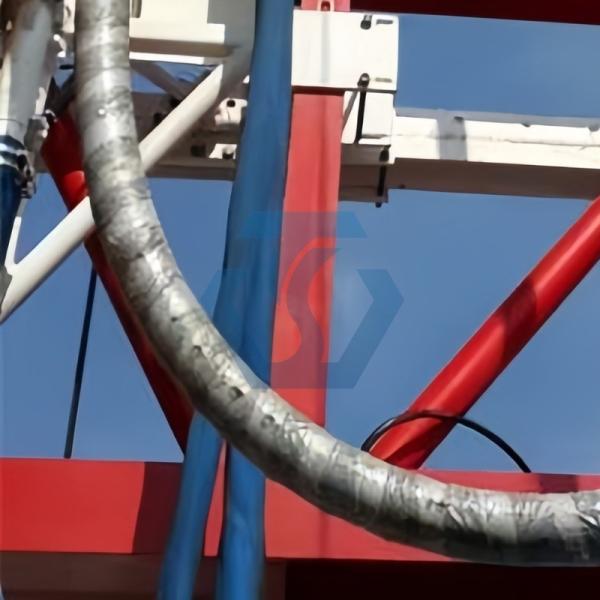

Buckle Flange High Pressure Hose Wire Winding Hydraulic Oil Pipe
Oil Field High Pressure Water Supply Pipeline 2 Inch 3 Inch 4 Inch
Product Description:
Drilling hose is the customary name for "rubber hose for rotary
drilling and shock absorption", and is also commonly called
"drilling equipment hose" and "water hose".
In geological and petroleum rotary drilling, it is necessary to
transport large volumes of fluid mud to the drill bit under high
pressure, and rotary drilling hoses and hose assemblies are used as
flexible connectors in mud delivery pipelines.
The functions and advantages of drilling hose produced and sold by
our company Huichi Petro are:
1. The reinforcing layer of the product adopts imported
high-strength steel wire for spiral hose, the inner lining rubber
adopts imported original rubber and our company's special formula,
and synthetic materials are used as the sealing layer. Different
formulas are used according to different liquid media;
2. The flange joints at the end of the product adopt suitable
materials according to the pressure and use environment and are
treated with anti-corrosion and heat treatment. The flange adopts
an integral forging process, and there is no need to consider the
direction alignment problem during installation;
3. Due to the influence of its structural raw materials, it can
withstand oil-based mud and water-based mud, and the inner wall is
highly wear-resistant and can withstand the flow rate of high-speed
mixed mud. It can also withstand extreme weather such as high
temperature and severe cold. Due to its external structure, it is
both corrosion-resistant and anti-static;
4. Working temperature: oil -40℃~+100℃, air -30℃~+50℃, water
emulsion +80℃ or below. If it exceeds, please contact us, our
company Huichi petro can customize products according to your
needs.
Product Features:
1. The hose is made of synthetic rubber and has good oil
resistance, heat resistance and aging resistance;
2. The hose has high pressure bearing capacity and excellent pulse
performance;
3. The hose body is tightly combined, soft to use, and has little
deformation under pressure;
4. The hose has good bending resistance and fatigue resistance;
5. The steel wire braided hose is long, generally with a fixed
length of 20 meters, and can be produced in a row of tens of meters
or even more than 100 meters;
6. Size : 1-1/2'', 2'', 2-1/2'', 3'', 4'', 5'', 6''.
Product Display:
Product Application:
It is suitable for the connection of throttle manifolds,
well-killing manifolds, drilling platforms, and changes in drilling
rig installation dimensions during oil drilling, and for conveying
high-pressure media such as oil, gas, and mud.
Product Model Parameters:
| Rotary Driling Dimensions and Pressures |
| API spec 7K:2010 |
| Inside Diameter mm (in.) | API Grade | Working Pressure MPa (psi) | Test Pressure MPa (psi) | Safoty Factor | Minimal Burst Pressure Mpa (psi) | MBR Operational m (in) | Remark |
| 50.8 (2.0) | A | 10.3 (1500) | 20.7 (3000) | 2.5 | 25.8 (750) | 0.9 (36) | |
| B | 13.8 (2000) | 27.6 (4000) | 2.5 | 34.5 (5000) | 0.9 (36) | |
| C | 27.6 (4000) | 55.2 (8000) | 2.5 | 69.0 (10,000) | 0.9 (36) | |
| D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 86.3 (12,500) | 0.9 (36) | |
| | 69.0 (10,000) | 103.4 (15,000) | 2.25 | 155.3 (22,500) | 1.2(48) | Cement |
| | 103.4 (15,000) | 155.1 (22,500) | 2.25 | 232.7 (33,750) | 1.4 (55) | Cement |
| 63.5(2.5) | A | 10.3 (1500) | 20.7 (3000) | 2.5 | 25.8 (3750) | 0.9 (36) | |
| B | 13.8 (2000) | 27.6 (4000) | 2.5 | 34.5 (5000) | 0.9 (36) | |
| C | 27.6 (4000) | 55.2 (8000) | 2.5 | 69.0 (10,000) | 0.9 (36) | |
| D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 863 (12,500) | 0.9 (36) | |
| E | 51.7 (7500) | 103.4 (15,000) | 2.5 | 129.3 (18,750) | 1.2 (48) | |
| | 69.0 (10,000) | 103.4 (15,000) | 2.25 | 155.3 (22,500) | 1.2 (48) | Cement |
| | 103.4 (15,000) | 155.1 (22,500) | 2.25 | 232.7 (33,750) | 1.5 60) | Cement |
| 76.2 (3.0) | C | 27.6 (4000) | 55.2 (8000) | 2.5 | 69.0 (1000) | 1.2(48) | |
| D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 86.3 (12,500) | 1.2 (48) | |
| E | 51.7 (7500) | 103.4 (15,000) | 2.5 | 129.3 (18,750) | 1.2 (48) | |
| | 69.0 (10,000) | 103.4 (15,000) | 2.25 | 155.3 (22,500) | 1.5 (60) | Cement |
| | 740 (10,700) | 103.4 (15,000) | 2.25 | 166.5 (24,150) | 1.5 (60) | Cement |
| 88.9 (3.5) | C | 27.6 (4000) | 55.2 (8000) | 2.5 | 69,0 (1000) | 1.4 (54) | |
| D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 86.3 (12,500) | 1.4 (54) | |
| E | 51.7 (7500) | 103.4 (15,000) | 2.5 | 129.3 (18,750) | 1.4 (54) | |
| | 65.0 (9400) | 103.4 (15,000) | 2.25 | 146.3 (21,200) | 1.4 (64) | Cement |
| 101.6(4.0) | C | 27.6 (4000) | 55.2 (8000) | 2.5 | 69.0 (1000) | 1.4 (54) | |
| D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 86.3 (12,500) | 1.4 (64) | |
| E | 51.7 (7500) | 103.4 (5000) | 2.5 | 129.3 (18,750) | 1.5 (60) | |
| | 69.0 (10,000) | 103.4 (15,000) | 2.25 | 155.3 (22,500) | 1.8(72) | Cement |
| 127.0(5.0) | C | 27.6 (4000) | 55.2 (8000) | 2.5 | 69.0 (10,000) | 1.5 (60) | |
| D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 86.3 (12,500) | 1.5 (60) | |
| E | 51.7 (7500) | 103.4 (15,000) | 2.5 | 129.3 (18,750) | 1.8(72) | |
| 152.4(6.0) | D | 34.5 (5000) | 69.0 (10,000) | 2.5 | 86.3 (12,500) | 1.8 (72) | |
| E | 51.7 (7500) | 103.4 (15,000) | 2.5 | 1293 (18,750) | 1.8 (72) | |
Product Package:
Iron box or iron frame , or customized according to customer
requirements , or according to customer requirements.
Product Detection:
100% tested before delivery.
Product Delivery Method:
Express, truck , train , air , sea , or customized according to
customer requirements.
