    HTS50 Skid Steer Loader

    Ask Lasest Price
    Brand Name : HIGHTOP
    Model Number : HTS50
    Certification : CE,EPA,ISO,TUV
    Payment Terms : Western Union, MoneyGram, T/T, D/A, D/P, L/C
    Supply Ability : 100 set per month
    Delivery Time : 5-14 work days
    • Product Details
    • Company Profile

    HTS50 Skid Steer Loader

    HTS50 Skid Steer Loader Instruction

    It is equipped with multiple functional configurations such as a quick - change device, a safety self - locking device, a boom support device, noise - reducing sponge, a front hydraulic auxiliary device, a reversing alarm, and a horn.

    Chain box: A tandem piston pump with stepless speed change technology is adopted to drive the hydrostatic motors on the left and right sides.

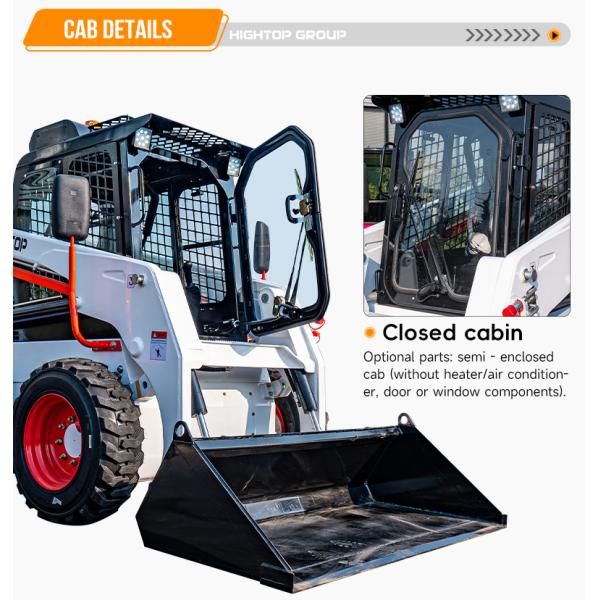

    Optional parts: 10 - 16.5 - 12PR RG400 heavy - duty tires, as well as solid tires with the specification of 30*10 - 16 (160/205); rotating warning lights, semi - enclosed cab (without heater/air conditioner, door or window components).

    A variety of auxiliary tools are available for selection, including construction buckets, enclosed sweepers, four - in - one buckets, four - point lifting lugs for snowplows, grab buckets, ditchers, manure scrapers, tree transplanters, rotators, milling machines, breaker hammers, forklift forks, etc.


    HTS50 Skid Steer Loader Parameter


    Max.Operation height4058mm
    Height of the bucket hinge pin3077mm
    Height to Cabin top2007mm
    Max.horizontal height of the bucket bottom2908mm
    Length without bucket2700mm
    Length with bucket3413mm
    Max. unloading height2303mm
    Unloading distance675mm
    Wheelbase999mm
    Departure angle23°
    Ground clearance185mm
    Rear turning radius1627mm
    Machine width1469mm
    Width of the tire edge1740mm
    Width of the bucket edge1780mm
    Bucket capacity0.35m³
    Diesel fuel tank capacity88L
    Hydraulic fuel tank capacity70L
    Rated working capacity750kg
    Overturning working capacity1500kg
    Operation weight3003kg
    Max. working speed12km/h
    Standard EngineXinchai490
    Power36.8KW/2500rpm
    Operation MethodMechanical/Hydraulic control

    HTS50 Skid Steer Loader Images

    HTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer Loader
