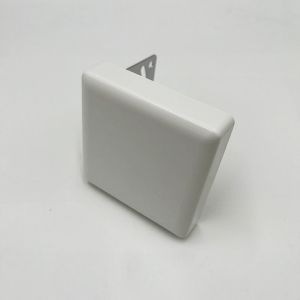

    UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10486-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 500 per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

    1. Specification

    A. Electrical Characteristics
    Frequency3700-4200MHz
    S.W.R.<= 2.0
    Antenna Gain10dBi
    PolarizationVertical
    Horizontal Beamwidth70±5°
    Vertical Beamwidth65±10
    F/B>16dB
    Impedance50Ohm
    Max. Power50W
    B. Material & Mechanical Characteristics

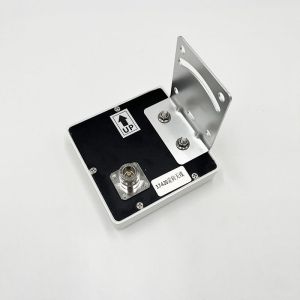

    Connector Type

    N Female connector

    Dimension97*97*23mm
    Radome materialABS
    Weight0.15Kg
    C. Environmental
    Operation Temperature- 40 ˚C ~ + 85 ˚C
    Storage Temperature- 40 ˚C ~ + 85 ˚C
    Operation Humidity<95%
    Rated Wind Velocity36.9m/s

    2. Antenna - S Parameter Test Data
    2.1 VSWR


    2.2 Total Efficiency & Gain:


    Frequency(MHz)

    Gain(dBi)

    3700

    9.8

    3750

    9.7

    3800

    9.8

    3850

    9.9

    3900

    9.9

    3950

    9.9

    4000

    9.6

    4050

    9.8

    4100

    9.6

    4150

    9.3

    4200

    9.0

    2.3 Radiation Pattern

    Port12D-Horizontal2D-VerticalHorizontal & Vertical
    3700MHz
    3900MHz
    4200MHz
