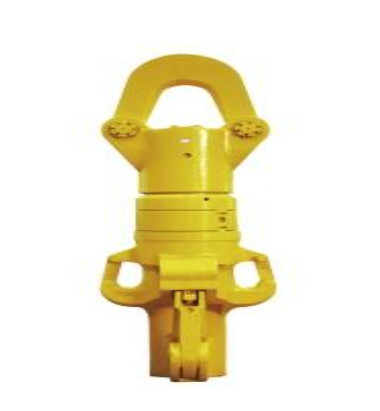

Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in)

    Buy cheap Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in) from wholesalers

    Buy cheap Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in) from wholesalers
    • Buy cheap Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in) from wholesalers

    Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in)

    Ask Lasest Price
    Payment Terms : L/C, T/T
    Supply Ability : 10 PIECES PER MONTH
    Delivery Time : 10-15 WORK DAYS
    • Product Details
    • Company Profile

    Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in)

    Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in)


    Descriptions of Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in):


    In accordance with API Spec.8C and marked with API MONOGRAM.

    The body, the bail, and the bail support are cast with special alloy steel.

    There is a reliable safety device.

    Equipped with a braking device to lock up and lock out the body.

    The primary load carrying parts of hook are subject to NDE test.

    Equipped with a hydraulic snubber assembly to protect drill pipe connectors when making up and breaking out connections.


    Specifications:


    ModelUnitsDG135DG170DG225DG315DG450DG675
    Max.Hook LoadKN135017002250315045006750
    Major-hook Openingmm(in)165(6 1/2)200(8)190(7 1/2)220(8 5/8)220(8 5/8)235(9 12)
    Dia.Of Major hookmm(in)140(5 1/2)150(6)160(6 1/4)180(7 1/8)180(7 1/8)316(8 1/2)
    Spring Travelmm(in)180(7 1/8)180(7 1/8)180(6 1/4)200(7 7/8)200(7 7/8)220(8 5/8)
    Overall DimensionsLmm220024982545295329533730
    W7207427808908901210
    H616678750880880975
    WeightKG191021002230341035007300
    Product Tags:

    1350 KN Hook Max


    Quality Hook Max.Hook Load 1350 KN Major-hook Opening 165(6 1/2) mm(in) for sale
