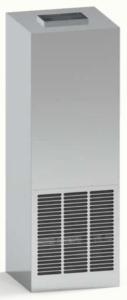

DC Motor High Static Pressure Vertical Ducted Concealed Type Fan
Coil Unit with Optional Electric Heater
Product Description:
Our FCU comes equipped with a ZG3/4’ water connection, allowing for
easy installation and maintenance. The unit also boasts three fan
speeds, providing flexibility and control in adjusting the air flow
to suit your specific needs.
Our Chilled Water Fan Coil Unit is suitable for both 2-pipe and
4-pipe systems, making it highly versatile and adaptable to
different setups. It can be used with both hot and chilled water,
providing both heating and cooling solutions, depending on your
requirements.
One of the standout features of our FCU is its coil type - copper
tube and aluminum fin. This combination ensures efficient heat
transfer, ensuring that your space is heated or cooled quickly and
effectively. The use of high-quality materials also ensures
durability and longevity, making it a cost-effective solution in
the long run.
For added convenience, our FCU also comes with an optional return
air plenum, which can be easily installed for improved air
circulation and better air quality. This ensures that your space is
always comfortable and healthy, as it helps to filter out dust,
allergens, and other harmful particles.
In conclusion, our Chilled Water Fan Coil Unit is a top-performing
product that is suitable for both residential and commercial
spaces. Its versatile design, efficient technology, and
user-friendly features make it an excellent choice for those
looking for a high-quality heating and cooling solution. Invest in
our FCU today and enjoy a comfortable and efficient environment all
year round!
Features:
1.Classical elegant design
No-spangle galvanized sheet, beautiful
appearance(Aluminum-galvanized sheet is optional).
2.High static pressure
The static pressure is 60Pa, and can change the static pressure
from 30Pa to 100Pa(Max.)
3.Big diameter fan, big air volume, low noise.
4.E-heater is optional.
5.DC motor is standard.
6.Fan motor parts is easy for maintaince
The fan was fix by bolts which connected with the riveting
structure on the fan, it is easy to remove the bolt and make
maintaince of the fan motor parts.
7.Coil assemble parts is easy for maintaince
Use stainless steel soft connection pipe, the coil parts can be
easily taken out by release4screws and loose the middle connection
between coil and soft pipe.
8. Stop valveModulating valveletc can be built-in the FCU, it can
reucethe job of installation.
Technical Parameters:
| Aluminum Fins | Hydrophilic Aluminum Fins |
| Number Of Fan Speeds | 3 |
| Coil Type | Copper Tube And Aluminum Fin |
| Water Connection | ZG3/4’ |
| Air Flow | 600-1200 CFM |
| Operating Voltage | 220V/1ph |
| Control Method | Remote Control |
| Fluid | Chilled Water/hot Water |
| |
