    Customized Industrial Embedded Motherboard Intel Core I5-6360U I3 I5 I7 DDR4 Dual Core Lan With RS232 RS485

    Ask Lasest Price
    Model Number : GW7-T67D3-V1.2
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

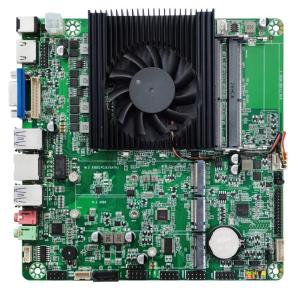

    Customized Industrial Embedded Motherboard Intel Core I5-6360U I3 I5 I7 DDR4 Dual Core Lan With RS232 RS485

    Customized ITX Industrial Motherboard Intel Core I5-6360U I3 I5 I7 DDR4 Dual Core Lan With RS232 RS485 GW7-T67D3-V1.1

    Features (product features)

    Support Intel Haswell-U series processors.

    Support 2 SATA interfaces, 2 USB3.0 and 6 USB2.0.

    Support a single 204 pin SO-DIMM to 8GB DDR3L/1600MHz.

    Supports 5.1-channel ALC887 chip.

    Support 6 serial ports, 1 parallel port, 1 PS/2 interface and 1 GPIO interface.

    High-speed USB3.0 interface transmission speed

    Mini PCIE expansion slot *2

    RJ45 Gigabit NIC interface *2

    Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

    Support Windows7 and Windows10 32/64 bit operating systems.

    Support single power supply 12V DC input.


    Model Name

    GW7-T67D3 VER:1.1

    processor

    Intel Skylake-U/Kabylake series processors

    CPU

    Support Intel 6th/7th generation Celeron, Pentium, i3, i5 and i7 CPU, such as I5-6360U and I5-7200U.

    memory

    technology

    Dual-channel DDR3L 1600MHz

    capacity

    The maximum capacity supports 32GB, and a single slot supports up to 16GB of memory.

    Memory slot

    2 x 204Pin DDR3L SO-DIMM(Non-ECC)

    Post I/O

    power source

    1 standard 2.5mm DC12V power socket

    HDMI

    Standard D socket, supporting HDMI1.4, maximum resolution: 4096*2304@24Hz (HDMI and JHDMI can only be selected).

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz (VGA interface and JVGA interface can only be selected).

    Ethernet

    1 or 2 gigabit network cards (LAN2 and USB2.0 are laid together), RTL8111K network card chip.

    USB port

    2 USB3.0 interfaces

    Audio

    1 (Line-out, Mic-in)

    Internal connector

    USB port

    6 USB2.0 interfaces (one FUSB can switch out 2 USB2.0 interfaces)

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

    EDP interface

    The maximum resolution can reach 4096x2304@60Hz(LVDS and EDP can only be selected).

    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 4096x2304@24Hz(HDMI and JHDMI can only be selected).

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    M.2 interface

    1 full-length M.2 M KEY slot, M.2 hard disk supporting SATA protocol and NVME protocol.

    MSATA interface

    1 MSATA interface supporting SATA 3.0 speed.

    serial ata

    1 7Pin SATA interface supporting SATA 3.0 speed.

    FAudio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

    PS/2 interface

    1*7Pin 2.0mm white socket, which can connect PS/2 keyboard and PS/2 mouse.

    serial port

    6 (of which COM1/4/5/6 supports RS232 mode, COM2 supports RS232/RS485/RS422 mode and COM3 supports RS232/RS485 mode).

    GPIO

    8-way bidirectional 5V

    PWR interface

    1 standard 2x2PIN DC12V power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 12.0W Full load power consumption: 46.8W w.

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
