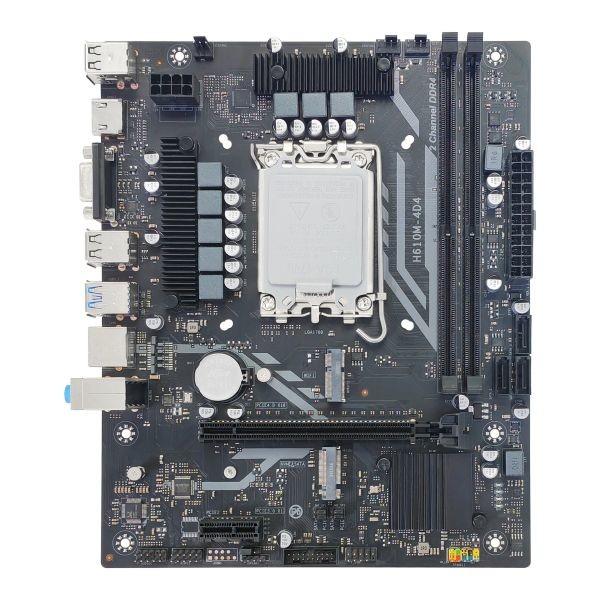

    Computer PC Motherboard 12th 13th 14th GEN Intel DDR4 Supported Matx Mainboard

    Ask Lasest Price
    Brand Name : OEM
    Model Number : H610M-4D4
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

    Computer PC Motherboard 12th 13th 14th GEN Intel DDR4 Supported Matx Mainboard



    lga 1700 motherboard H610M-4D4 PC mainboard Intel Core 12/13/14th I9/I7/I5/I3/Pentium with HDMI&VGA,1000M LAN,Dual DDR4, M.2 motherboard

    l Support Intel LGA1700 processor

    l Support dual-channel DDR4 DIMM memory

    l 3× SATA socket

    l 1x M.2 slot (NVME&SATA)

    l The rear IO provides 6xUSB.

    l 1x HDMI2.0 + 1 x VGA

    l FUSB built-in pin can expand 4 USB interfaces.

    l 1 M.2 WIFI interface

    l 1 x Gigabit network card, supporting PXE and network wake-up function.

    l 1 x PCIE4.0 X16 slot, 1 x PCIE3.0 X1 slot.

    l Support 24Pin+8Pin ATX power input.

    l Windows 10,Windows 11


    Model Name

    H610M-4D4 VER:1.1

    Motherboard chip

    Intel Q670

    CPU

    Intel Core 12/13/14th i9/i7/i5/i3/Pentium LGA1700 Pin Processor

    memory

    2*DDR4 288-Pin DIMM, 2133/2400/2666/2933/3000/3200mhz (Max) supports XMP with a maximum capacity of 64G.

    Cunzhu

    1* M.2(NVME&SATA) slot; 3*SATA 6Gb/s interface (NVME X4 Gen3 & SATA 6Gb/s)

    network

    1*Realtek Gigabit NIC chip

    Wireless interface

    1*WIFI PCIE

    PCIE slot

    1*PCIE4.0 X16 slot; 1*PCIE3.0 X1 slot

    audio frequency

    1*Line out; 1*MIC In; 1*Line In; 1*F_Audio built-in pin

    Audio chip

    1*Realtek ALC897 HD Audio Chip

    ESPI

    1 motherboard debugging interface

    Display interface

    1*HDMI2.0 ; 1*VGA (supporting synchronous dual display)

    Usb interface

    IO interface: 4 * USB 2.0; 2*USB3.2 Gen2(10Gb/s)

    Built-in pins: 1 set of F_USB pins can expand 2 USB2.0 ports.

    One set of FUSB pins can expand two USB3.2 Gen1 ports (5Gb/s).

    Functional pin

    1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan

    Power input

    24Pin+8Pin ATX power socket

    product size

    ATX motherboard specification, 180 x 220 mm x 4L

    Working temperature

    -10℃~60℃

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25℃~70℃

    power consumption

    Standby power consumption: 20~25W Full load power consumption: 230~260W

    (If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

    other

    1*JCMOS jump cap; 1*SATA&PCIE switching jump cap

    remarks

    USB1 upper port is invalid when using WIFI module.













    FAQ

    Q1. Can I get a sample for testing?
    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.


    Q2. What's your MOQ?
    Re: MOQ 1 pcs. EXCALY information could inquiry :Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga


    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is
    following:
    1) provide your specific requirement.
    2) our design engineer draw the design draft.
    3) you confirm the design draft.
    4) we start produce it.
    Q4. Can you print my logo on motherboard ?
    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo
    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.
    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
    Re: Yes it can be working in 24h*7 days, working temperature range-10~60, storage temperature range-40~70
    Q6. Can this computer support 2 monitors?
    Re: Yes, it support 2 monitors display via 1 HDMI and 1 VGA.
    Q7. What is the lead time of your products?
    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model
    to insure the quality before shipping.
    Q8. What payment method do you accept?
    Re: We accept T/T,Paypal, Western Union
    Q9. How will you delivery the device to me?
    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.


    Q10.What's the warranty?
    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
    repair cost (except change new accessories)
