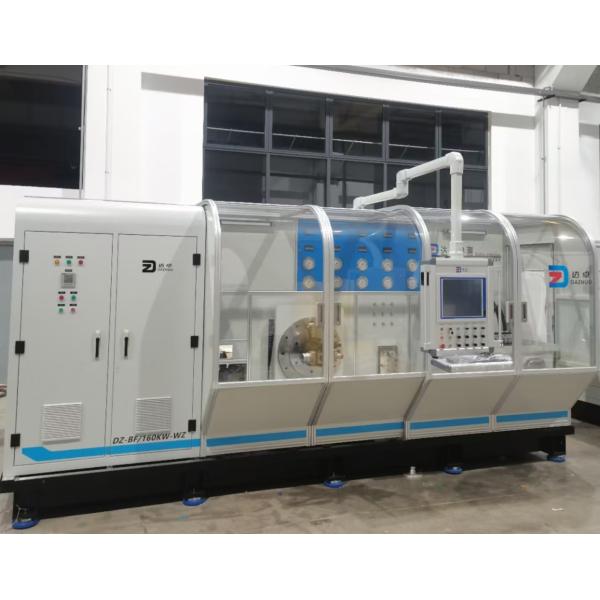

Advanced Hydraulic Test Bench: Multi-Function Pump & Valve Analysis
System for Industrial Quality Control
1. Overview
The Changzhou Dazhu Pump - Valve Comprehensive Test Bench is a high
- precision, multi - functional test platform designed to meet the
testing requirements of various types of pumps and valves. It can
accurately measure and evaluate the performance parameters of pumps
and valves, providing reliable data support for product research,
development, and quality control.
2. Test Bench Structure
The test bench mainly consists of a test pipeline system, a power
system, a control system, and a data acquisition and analysis
system. The test pipeline system is used to simulate different
working conditions of pumps and valves; the power system provides
the necessary power for the operation of pumps and valves; the
control system realizes the control of the test process, including
adjusting the flow rate, pressure, and other parameters; the data
acquisition and analysis system collects and analyzes various test
data in real - time.
3. Test Items
- Pump Test Items: Flow rate, head, power, efficiency, cavitation
performance, etc.
- Valve Test Items: Flow coefficient, pressure drop, sealing
performance, etc.
4. Technical Parameters
- Flow Rate Range: [Specific minimum flow rate] - [Specific maximum
flow rate]
- Pressure Range: [Specific minimum pressure] - [Specific maximum
pressure]
- Temperature Range: [Specific minimum temperature] - [Specific
maximum temperature]
- Measurement Accuracy: Flow rate measurement accuracy is within
±[X]%, pressure measurement accuracy is within ±[X]%, etc.
5. Software and Hardware Features
- Hardware: Adopt high - precision sensors, high - performance
actuators, and reliable control components to ensure the stability
and accuracy of the test bench.
- Software: The test bench is equipped with professional test
software, which has functions such as automatic test process
control, data acquisition, data analysis, and report generation.
The software interface is user - friendly, easy to operate, and can
meet the different needs of users.
6. Safety and Reliability
The test bench has a complete safety protection system, including
over - pressure protection, over - temperature protection, leakage
protection, etc., to ensure the safety of operators and equipment
during the test process. At the same time, through reasonable
structural design and high - quality component selection, the
reliability and service life of the test bench are improved.
7. Application Scope
The Changzhou Dazhu Pump - Valve Comprehensive Test Bench is widely
used in pump and valve manufacturing enterprises, scientific
research institutions, and quality inspection departments. It can
be used for product development, quality inspection, performance
evaluation, and other aspects, providing strong technical support
for the improvement of pump and valve product quality and
technological level.
