Automated Hydraulic System Testing: Save Time With YT-BF/160KW-WZ’S
AI-Driven Diagnostics & Reporting
Description

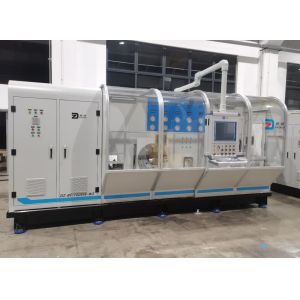

The YT-BF/160KW-WZ Hydraulic Pump & Valve Test Bench is a
state-of-the-art testing solution designed for R&D,
manufacturing, and remanufacturing enterprises requiring precision,
durability, and compliance with industry standards. Engineered to
test open/closed hydraulic pumps (including motor-driven
closed-pump configurations) and hydraulic valves, this system
combines advanced automation with user-centric design for seamless
integration into industrial workflows.
Key features include:
- Fully enclosed structure for enhanced safety and reduced noise
pollution.
- Proportional valve-controlled loading paired with high-pressure
flow sensors (43MPa max) for unparalleled accuracy.
- Real-time monitoring via an intuitive graphical interface with
embedded hydraulic circuit diagrams.
- Modular design for easy installation and transportation, ideal
for dynamic industrial environments.
Technical Parameters
1. Power & Drive System
- 160KW servo motor with variable-speed control (standard:
1,500rpm; max: ≥4,500rpm).
- 1,000L anti-corrosion hydraulic tank for extended system
longevity.
2. Loading Systems
- Pump Testing: Dual bridge-loading circuits with proportional
valve loading and integrated cooling.
- Valve Testing: Shared pump-loading circuit, adjustable up to
43MPa.
3. Sensors & Safety
- High-pressure flow sensors and ISO-certified filters ensure
system cleanliness and data reliability.
- Self-diagnostic protocols for real-time fault detection and
operational stability.
Competitive Strengths
1. Precision Engineering
- Non-welded pipelines and anti-rust-treated components minimize
contamination risks, aligning with ISO cleanliness standards .
- Automated test report generation and curve-printing capabilities
streamline post-analysis workflows.
2. Industrial-Grade Durability
- Robust enclosed structure designed for heavy-duty applications,
validated by field testing in steel plants and hydraulic systems .
3. Smart Automation
- Embedded hydraulic schematics and real-time parameter dashboards
reduce operator training time.
- Compatibility with data-logging software for long-term
performance tracking.
Why Choose YT-BF/160KW-WZ?
This hydraulic pump test bench sets the benchmark for
high-precision performance testing, offering industrial-grade
reliability and smart automation for enterprises seeking
cost-effective, long-term solutions. From R&D validation to
post-repair quality assurance, it ensures compliance with global
hydraulic testing standards while optimizing operational
efficiency.
