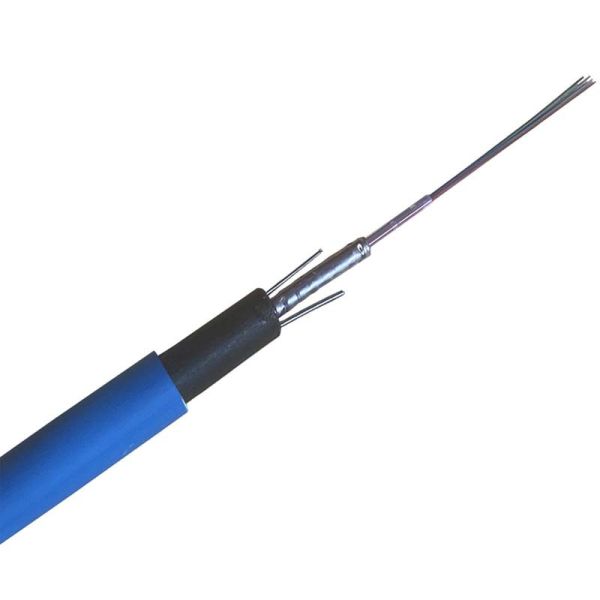

SM singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable
Strength Member:
Embedded steel wire1.0mm or 0.7mm
Armor:
Corrugated steel tape(PSP)
2-24 fibers
Uni-loose tube gel-filled
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
Features
Outdoor fiber cable central tube GYXTW
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
Performance of Cabled Optical FiberThe performance of cabled optical fiber (ITU-T Rec. G.652D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm |
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km
|
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
| Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm |
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
|
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
| Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm | ≤ 0.1 dB/km |
| | | | | |
| |
| | | |
| | B2:Zero dispersion shifted |
| | B1.2:Cut-off wavelength shifted |
| | B4:Main technical data for positive dispersion shifted single-mode fiber |
| | | NW | Minimum allowable Tensile Strength(N) | Minimum allowable CrushLoad(N/100m) | Minimum Bending Radius(MM) | Storage Temperatue |
| | (MM) | (KG) | short/long term | short/long term | short/long term | (°C) |
| 2 | 8.0 | 70 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
| 4 | 8.0 | 70 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
| 6 | 8.0 | 70 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
| 8 | 8.0 | 70 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
| 10 | 8.0 | 70 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
| 12 | 8.0 | 70 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
| 24 | 9.0 | 95 | 1500/600 | 1000/300 | 20D/10D | -40~+60 |
Different diaameter different colors can be customized,Welcome to your Inquiry!

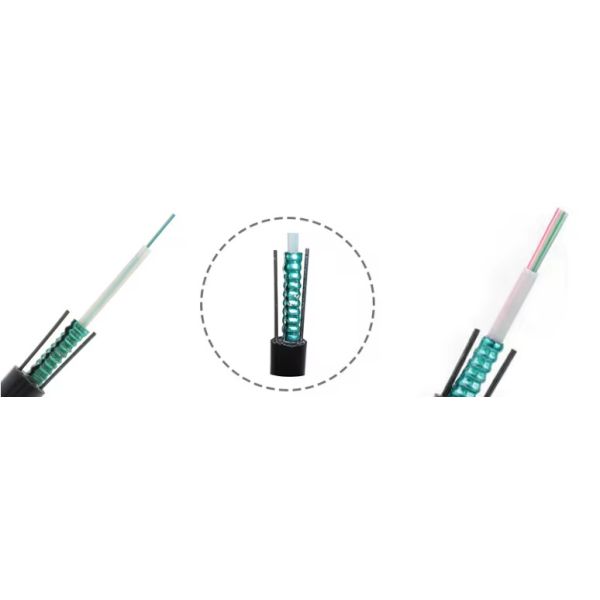

GYXTW fiber optic cable
OD :6mm 7mm 8mm
Support customization
Application
Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
Short delivery time High qualtiy Good price
