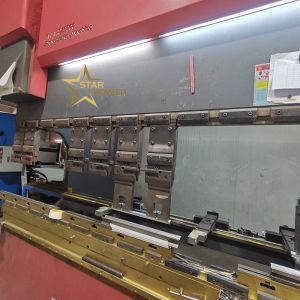

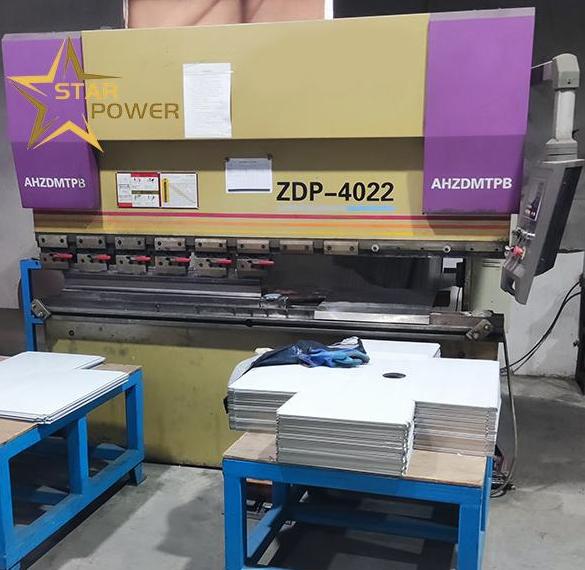

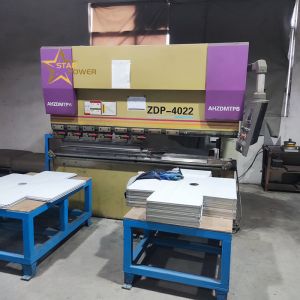

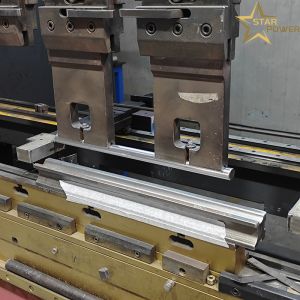

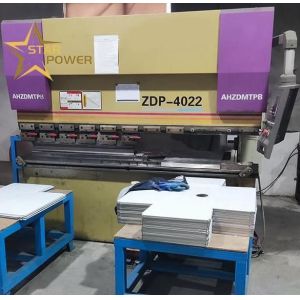

    Automatic Bending Machine For Hydraulic Sink Kitchen Utensils Bending

    Ask Lasest Price
    Brand Name : Star Power
    Model Number : 63T-2500MM
    Certification : CU,ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 1 month
    • Product Details
    • Company Profile

    Automatic Bending Machine For Hydraulic Sink Kitchen Utensils Bending

    Automatic Bending Machine For Hydraulic Sink Kitchen Utensils Bending


    The following is a brief introduction to the company's hydraulic sink kitchenware bending machine:

    1. Professional use

    Designed for the bending process of sinks and kitchenware, it is suitable for the forming and processing of a variety of metal sheets to meet the high precision needs of kitchen supplies manufacturing.


    2. Automated operation

    Equipped with advanced hydraulic system and automatic control, easy to operate, stable operation, can effectively improve production efficiency and product quality, reduce labor costs.

    3.Technical Parameters
    The nominal force630KN
    Bend length2500mm
    Distance between columns2000mm
    Throat depth300mm
    Slide stroke100mm
    Open height685mm

    Slide fast downspeed

    100m/s
    Slide return80m/s
    Slide working speed10m/s
    Power of main motor5.5KW
    Back block X-axle travel500mm
    Control axes2Axis
    Control systemTP10S
    Work table typeSame-center workbench

    4.Operating Advantages
    Simple and user-friendly human-machine interface
    Operators can easily operate it after simple training, reducing the difficulty of operation.
    Safety protection devices
    Equipped with complete safety protection facilities to ensure the personal safety of operators.
    Automatic diagnosis and alarm function
    The machine can monitor the operating status in real time and send out an alarm and provide diagnostic information in case of a fault.
    5.Application Fields
    It is widely used in the processing of sheet metal parts in industries such as metal furniture manufacturing, metal kitchenware production, automotive manufacturing, electronic equipment, aerospace, medical equipment, etc.
    The above content is for reference only. You can modify and improve the content according to the actual situation of the machine

    Specifications:


    Process termProcess introductionmachineMachine sizefloor spacepower
    (Kw)
    Length(m)Width(m)
    Process 1Steel Coil Laser cuttingLaser cutter line12000x2600x1950mm172.645
    Process 2Sheet welding for Saving MaterialStraight Seam Welding Machine1400x1100x2000mm1.41.10.4
    Process 3Sheet Grinding for Saving MaterialSheet Grinding Machine2250x1550x1800mm2.31.63.2
    Process 4Punching of water holeDeep throat Press machine/J21S-40T1500x1200x2000mm1.51.24
    Process 5Punching for PrebendingDeep throat press machine/J21S-63T1700x1400x2200mm1.71.44
    Process 6Press the water lineBending machine/30T-1600MM2600x1400x2000mm2.61.43
    Process 7Bending of the sink baseBending machine/63T-2500MM2800X1700X2350MM2.81.75.5
    Process 8Press arc & bottom cornerTwo-In-One Integrated Rolling Seam&Corner Pressing Machine1300x750x2000mm1.30.752.3
    Process 9Welding for vertical seams and bottom cornerCNC Welding Special Machine1400x1100x2000mm1.41.10.4
    Process 10Round corner Of vertical seams grinding (Inside)Grinding Machine For Round corner Of vertical seams2550x850x2200mm2.60.852.3
    Process 11Repair the Panel's missing cornersCNC Welding Special Machine(for panel repair)1100x850x1450mm1.10.850.4
    Process 12CNC Welding For Panel's Inner EdgeMulti-Axis CNC Welding Special Machine
    (For panel's inner edge)
    1700x1400x1600mm1.71.41.3
    Process 13Grinding for the sink's panelGrinding machine (Abrasive belt type)2500x1400x1700mm2.51.43
    Process 14Grinding for the sink's panel(mirror surface)Grinding machine3000x1400x1700mm31.43
    Process 15Painting For Sink Bottom Back SideManual painting equipment2200X1800X1600mm2.21.84.5
    Process 16Drying after PaintingDrying Oven13000X1000X1600mm13130
    Total floor space(Includ spaced distance and transportation route):>65m(Length)x 10m(Width)

    Process flowEquipment nameSpecific machine name
    CuttingLaser cuttingCustomizable
    Seam and corner pressingSeam and corner pressing machineSeam pressing machine, Corner pressing machine, Integrated seam and corner pressing machine
    StampingStamping machinePunching of water hole,Punching of Prebending
    BendingBending machineBending to form the bowl shape,
    Press the water line
    WeldingWelding machineCNC fillet welding machine, CNC corner mending welding machine, seam welding machine, CNC planar welding machine,
    Press arc & bottom
    corner,
    Grinding and polishingGrinding and polishing machine
    Automatic Grinding for the
    sink's panel(Rough
    Polishing),Automatic Grinding for the
    sink's panel(Fine Polishing),
    Round corner Of vertical
    seams grinding (Inside)

    Advantages:
