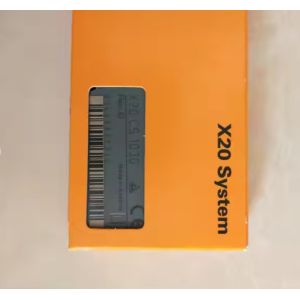

B&R X20CS1030: High - Performance CANopen Master Module with 2 Ports, Precise Data Transmission, and Robust Design for Industrial Automation

Brand Name :

B&R

Model Number :

X20CS1030

Certification :

Price :

98$/piece

Payment Terms :

T/T

Supply Ability :

1piece in stock

Delivery Time :

3 day

B&R X20CS1030: High - Performance CANopen Master Module with 2 Ports, Precise Data Transmission, and Robust Design for Industrial Automation

1. Product Function

The X20CS1030, with the material number X20CS1030, is designed to provide an RS485/RS422 interface. This interface enables the serial and remote connection of complex devices to the X20 system. It serves as a crucial link that allows these complex devices to communicate with the X20 system effectively, facilitating data transfer and interaction in industrial setups.

2. Key Feature

One of the notable features of the X20CS1030 is its integrated terminating resistor. This resistor helps in reducing signal reflections and ensuring stable and reliable communication. In a serial communication environment, signal integrity is of utmost importance. The integrated terminating resistor plays a vital role in maintaining the quality of the signals transmitted between the complex devices and the X20 system.

3. Application Scenario

Beyond the standard I/O requirements, complex devices often need to be connected to the X20 system. The X20CS communication modules, like the X20CS1030, are specifically designed for such scenarios. As regular X20 electronics modules, they can be conveniently placed anywhere on the remote backplane, providing flexibility in system configuration and installation.

Attribute	Details
Product Model	X20CS1030
Manufacturer	B&R
B&R ID Code	0x4512
Interface Type	RS485/RS422
Function	Serial, remote connection of complex devices to the X20 system
Key Feature	Integrated terminating resistor
Communication Speed	Up to 12 Mbit/s
Electrical Isolation	500 VDC
Number of Channels	1
Operating Temperature	-25°C to +60°C (horizontal mounting); -25°C to +50°C (vertical mounting)
Storage Temperature	-40°C to +85°C
Relative Humidity	5 - 95% (non - condensing)
Power Consumption	Bus: 0.22 W; Internal I/O: 0.3 W
Dimensions	125 mm (W) x 100 mm (H) x 110 mm (D)
Weight	Approximately 0.7 kg
Mounting	DIN - rail mounting
Status Indicators	LEDs for power, communication status
Certifications	CE, UL, cUL, ATEX (Zone 2), DNV - GL, CCS, LR, KR, ABS, BV
Compatibility	Compatible with X20 system
