8CH AI Mobile DVR System Description
8CH 1080P Ai HDD Mobile DVR Real Time Monitoring And Tracking 4G Ai
Adas DMS MDVR CCTV System
The 8CH AI Mobile DVR is a cutting-edge vehicle-mounted
surveillance solution designed to deliver intelligent, real-time
monitoring and recording for commercial fleets, public
transportation, law enforcement, and mobile security applications.
Combining high-definition video capture, AI-powered analytics, and
rugged reliability, this device ensures seamless security and
operational efficiency in dynamic environments.
8CH AI Mobile DVR Key Features
8-Channel HD Video Input
Supports up to 8 cameras (1080p/720p) for comprehensive 360°
coverage, ideal for buses, trucks, taxis, and emergency vehicles.
Flexible camera compatibility (AHD, CVBS, or IP cameras) to suit
diverse setups.
AI-Powered Smart Analytics
Real-Time Alerts: AI algorithms detect and flag critical events
(e.g., lane departure, collision risks, driver fatigue,
unauthorized access).
Face & License Plate Recognition: Enhance security with automated
identification of individuals and vehicles.
Behavior Analysis: Monitor suspicious activities (e.g., loitering,
object removal) for proactive threat prevention.
Dual Storage & Extended Capacity
Built-in 1TB HDD + expandable microSD card slot (up to 512GB) for
redundant, fail-safe data storage.
Auto-overwrite function ensures continuous recording without manual
intervention.
4G/Wi-Fi/GPS Connectivity
Stream live footage and GPS location data remotely via 4G LTE or
Wi-Fi.
Access recordings, adjust settings, and receive alerts through a
dedicated mobile app or web platform.
Rugged Design for Harsh Conditions
Operates flawlessly in extreme temperatures (-20°C to 70°C) and
withstands vibrations, shocks, and dust.
12-36V wide-voltage input compatible with most vehicle power
systems.
Night Vision & Low-Light Optimization
Advanced IR-cut filters and WDR technology ensure clear footage in
darkness or challenging lighting.
Compliance & Integration
Meets industry standards (e.g., FCC, CE) and integrates with fleet
management systems, CAN bus, and alarm triggers.
8CH AI Mobile DVR Product Parameter
| Item | Description |
| Model | VW9208-AI |
| OS | Linux3.18 |
| Operating | Cell phone APP, PC client, Remote controller |
| Functions Summary | Preview, recording, playback, network transmission, positioning, AI
analysis, multiple sensor data acquisition. |
| Video and Preview | Video Input, Output,Signal standard | AHD input:4ch 1080p/25fps, 4ch 720p/25fps, 4ch D1/25fps, IPC
input:1ch default, externally expandable 1-4ch, Output: 1ch CVBS
default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω,
NTSC/PAL optional |
| OSD | Character superposition function, information superposition of time
and date, device ID and GPS, alarm,etc. |
| Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. |
| Image quality | Code stream, frame rate optional |
| Preview | 1/4/6/8/9 channel preview |
| Resolution | AHD: 1080P:25fps/1M/2M/4M/6M 720P: 25fps/1M/2M/4M/6M D1:25fps/512K/1M/2M IPC: 1080P: 30fps/1M/2M/4M/6M
720P: 30fps/1M/2M/4M/6M |
| Audio | Audio Input, Output | 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p,
4.7kΩ |
| Compression Format | G.711A, G.726 |
| Recording | Storage Medium | Supporting one 2.5” SATA hard drive and one SD card |
| Video Strategies | Recording at start up by default, supporting timed recording,
recording triggered by alarm and event, as well as manual recording |
| Alarm pre-recording | 0-60min |
| Alarm recording delay | 0-30min |
| Playback channel | Support local 1/4/6/8 channel playback |
| Browse mode | Time, channel, event. |
| Communication Ports | RS232, RS485 |
| ADAS | Built-in (Optional) |
| Wireless Transmission | 3/4G/5G wireless transmission module,
EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect. Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network
aviation head(100M) |
| Position | GPS/BD: Positioning, speed detection, time synchronization |
| Power Supply and Power Consumption | Power Supply | 1ACC on/off |
| Input Voltage | DC:+8V ~ +36V |
| Output Voltage | +12V@1A; +5V@1A |
| Power Consumption | Max 25W consumption, about 0W in standby mode |
| Operating Environment | Temperature | preheating: -20℃ ~ +70℃ |
| Humidity | 8% to 90% |
| Dimensions | 324.6x238x116 mm. |
| Weight | Net: 2KG |

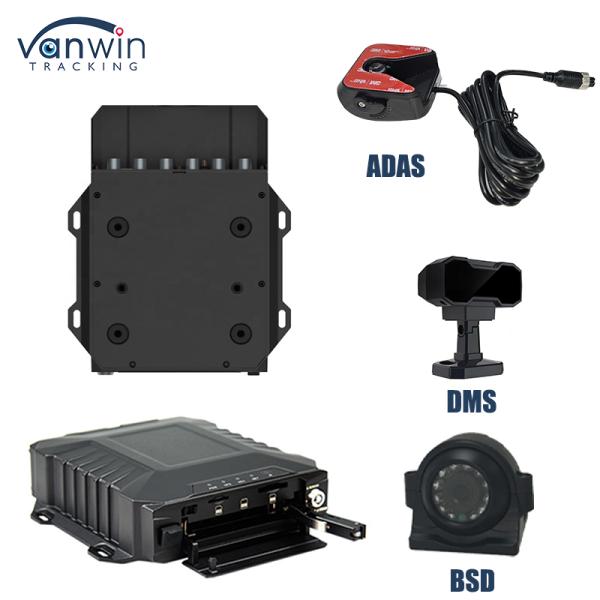

Photos
8CH AI Mobile DVR Applications
- Public Transport: Monitor passenger safety and driver behavior.
- Logistics: Track cargo security and route compliance.
- Law Enforcement: Evidence collection and real-time situational
awareness.
- Emergency Vehicles: Ensure mission-critical operations are
recorded.
FAQ:8CH AI Mobile DVR
General Product Information
Q1: What is the 8CH AI Mobile DVR?
A: It is an advanced vehicle-mounted surveillance system with 8
camera channels, AI analytics, GPS tracking, and 4G/Wi-Fi
connectivity. It is designed for real-time monitoring, recording,
and security optimization in mobile environments like fleets,
public transport, and emergency vehicles.
Q2: What industries is this DVR suitable for?
A: Ideal for logistics, public transportation, law enforcement,
school buses, taxis, and any mobile operations requiring reliable
surveillance and AI-driven insights.
Installation & Compatibility
Q3: What types of cameras are supported?
A: The DVR is compatible with AHD, CVBS, and IP cameras, offering
flexibility for hybrid setups. Each channel supports up to 1080p
resolution.
Q4: How difficult is the installation process?
A: Installation is straightforward for professionals. It includes
standard wiring and mounting guidelines. For complex setups (e.g.,
integrating with CAN bus or fleet systems), consult our technical
team.
Q5: Does it work with existing vehicle power systems?
A: Yes. It supports 12-36V DC input, compatible with most vehicles
(e.g., trucks, buses, cars).
AI & Functional Features
Q6: What AI features does it include?
A: The AI analytics include:
Real-time alerts for driver fatigue, lane departure, collision
risks, and unauthorized access.
Face/license plate recognition.
Behavior analysis (e.g., loitering detection, object removal
alerts).
Q7: Do I need an internet connection for AI functions?
A: No. AI processing occurs locally on the device, ensuring
functionality even without internet. Alerts and data can be
transmitted via 4G/Wi-Fi when connectivity is available.
Q8: Can I customize AI alert rules?
A: Yes. Thresholds for alerts (e.g., sensitivity for fatigue
detection) can be adjusted via the mobile app or web platform.
Storage & Data Management
Q9: How much storage does it have?
A: The device includes a built-in 1TB HDD and supports microSD
cards up to 512GB. Storage duration depends on resolution and
channel usage (e.g., ~7 days for 8CH @1080p with H.265
compression).
Q10: How do I access recorded footage?
A: Footage can be retrieved via:
Direct USB export from the DVR.
Remote access via the mobile app or web platform.
Removing the HDD/microSD card.
Q11: Does it overwrite old recordings automatically?
A: Yes. When storage is full, it overwrites the oldest footage
unless locked (e.g., event-triggered videos).
Connectivity & Remote Access
Q12: How does remote live viewing work?
A: Use 4G LTE or Wi-Fi to stream live video, GPS location, and
alerts through the dedicated app or web interface. Dual SIM slots
ensure network redundancy.
Q13: Is GPS tracking included?
A: Yes. The built-in GPS module provides real-time location
tracking and route history.
Q14: Can multiple users access the DVR remotely?
A: Yes. The admin can assign access levels to multiple users (e.g.,
drivers, fleet managers, security teams).
Durability & Maintenance
Q15: Can it withstand harsh environments?
A: Yes. It operates in temperatures from -20°C to 70°C and is
resistant to vibrations, dust, and shocks (IP67-rated optional).
Q16: How do I update the firmware?
A: Updates are pushed remotely via the app or can be manually
installed via USB. Notifications alert users to new updates.
