    PM701 EVSE Tester High-Performance Diagnosis Machine For Cars EVSE Adaptor For All Standard AC Charging Stations with PE Pre-Testing

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM701
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    PM701 EVSE Tester High-Performance Diagnosis Machine For Cars EVSE Adaptor For All Standard AC Charging Stations with PE Pre-Testing

    Advanced Charging Station Tester - PM701U/PM701E/PM701UT


    Features of the PM701 Series EVSE Adapters


    Multi-Standard Support— Compatible with Various Protocols

    Extensive Evaluation Functions— Emulate Charging Conditions; Preliminary Testing Capabilities; Fault Replication

    Protective Measures— Electrical Current Leakage Examination; Adherence to Certified Norms (IEC/EN 61010-1, IEC/EN 61010-2-030, CAT III 600V standards)

    Intuitive Operation— Visual Status Indicator; Adaptable Output Connectors

    Robustness and Dependability— IP54 Rated for Resistance to Dust and Water; Premium-Grade Components

    Advanced Technical Features— Accommodates Different Voltage Systems (Single-Phase and Three-Phase); Efficient Circuit Protection (10A/250V Fuse)


    Specifications
    ModePM701UPM701EPM701UT
    Test ObjectAC Charging StationAC Charging StationAC Charging Station
    Test InterfaceComplies with SAE J1772 stangardType2(European Standard)NACS(Tesla)
    Simulate Chargeing StateA,B,C or DA,B,C或DA,B,C或D
    PE Pre-Testing
    CP Pre-Testing
    Simulate Cable Resistance
    Simulated CP Error
    Simulated PE Error
    Leakage Tripping Test≥6mA/110V≥6mA/110V
    Charging Output Terminal4mm port/American standard socket4mm port/European standard socket4mm port/American standard socket
    Support Voltage TypesSingle phase or three-phaseSingle phase or three-phaseSingle phase or three-phase
    Indicator Light
    Fuse10A/250V10A/250V10A/250V
    General
    Protection GradeCase IP54
    Safety RatingIEC/EN 61010-1,IEC/EN61010-2-030,CAT Ⅲ 600V
    Measurement CategoryIEC/EN 61851-1,IEC/HD 60364-7-722


    Description of the PM701 Series EVSE Adapters


    The PM701 series is the ideal choice to ensure the safe and reliable operation of charging stations.

    The PM701 series EVSE adapters include models PM701U, PM701E, and PM701UT, designed for AC charging stations. They comply with various international standards and are compatible with different charging station interfaces.

    The PM701 series EVSE adapters are professional tools designed for electric vehicle charging stations. With comprehensive testing capabilities, exceptional safety features, and a robust design, these adapters can effectively simulate charging states, detect electrical faults, and provide instant feedback. Whether for installation, maintenance, or troubleshooting,


    • Test Interface: Complies with SAE J1772 (Type 1), Type 2 (European Standard), and NACS (Tesla).
    • Error Simulation: Capable of simulating cable resistance, CP errors, and PE errors to identify and troubleshoot potential issues.
    • Pre-Testing Functions: Includes PE (Protective Earth) and CP (Control Pilot) pre-testing to verify proper functionality before use.
    • Simulate Charging States: Can simulate different charging states (A, B, C, or D) to provide thorough diagnostics.
    • Testing Functions: Supports simulating charging states (A, B, C, or D), PE pre-testing, CP end testing, simulating cable resistance, and simulating CP and PE errors.
    • Electrical Leakage Test: Includes an electrical leakage trip test (≥6mA/110V).

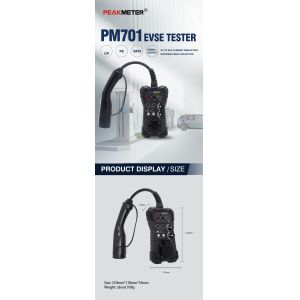

    Images of the PM701 Series EVSE Adapters




    PM701 Series EVSE Adapters: Specifically designed for electric vehicle charging stations, compatible with multiple international standards to ensure the safety and reliability of charging stations.
