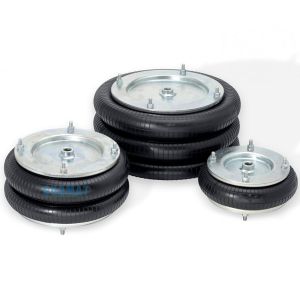

Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate

    Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers

    Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers
    • Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers
    • Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers
    • Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers
    • Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers
    • Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers
    • Buy cheap Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate from wholesalers

    Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B4.5X2P
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate

    Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate


    Product Description


    GUOMAT air springs are renowned for their exceptional durability, precise engineering, and cost-effectiveness, making them ideal for a broad range of actuation and vibration isolation applications. Featuring proven designs, fabric-reinforced Neoprene or Natural Rubber flex member construction, and corrosion-resistant end retainers, these air springs deliver unmatched quality and performance. We offer an extensive selection of air spring types to suit your specific actuation or isolation requirements. Options include Single, Double, and Triple Convoluted Bellows, Rolling Lobe, and Sleeve Types, all available in a variety of sizes with the compatible End Retainer Style for seamless installation.


    Product Specification


    GUOMAT NO.Part NumberMax. Diameter (mm)Min. Height (mm)Max. Height (mm)Full Stroke (mm)Design Height (mm)C to C Distance (mm)Space Required (mm)
    2B4.5×2P41/2×2125651458010093140
    2B6×2T6×216873170100120127180
    2B8×2T8×223072225153150156240
    2B91/4×2T91/4×226070240170160168275
    2B10×2T10×228070240170160181295
    2B12×2T12×233074240166160232345
    2B141/2×2T141/2×239570280210180283410
    2B16×2T16×243077320243180283445

    Precautions to Observe


    1. Do not exceed stated stroke.
    2. Do not inflate assembly when it is unrestricted.
    3. Do not inflate beyond pressures stated without prior consultation with GUOMAT.
    4. Respect maximum and minimum heights.
    5. The bellows must be securely fixed.
    6. Do not use without air pressure.

    Flange Convoluted Rubber Bellows


    TypeMax. DiameterMinimum Height (mm)Maximum Height (mm)Total StrokeStatic Height (mm)C to C DiameterSpace Required
    41/2×11254590456593140
    6×1168581085080127180
    8×1230471207390156240
    10×1280501358595181295
    12×1330501459595232345
    141/2×139547165118105283410
    41/2×2125651458010093140
    6×216873170100120127180
    8×223072225153150156240
    91/4×226070240170160168275
    10×228070240170160181295
    12×233074240166160232345
    141/2×239570280210180283410
    16×243077320243180283445
    41/2×312510020010014593140
    6×3168105225150180127180
    10×3280100365265235181295
    12×3330100430330222232345
    141/2×3395100476376280283410
    16×3430125500375280283445

    The Pictures of Details


    Dunlop 4.5X2 Aluminium 4 1/2X2 Springride Bellows Sp1457 Air Spring for Papermaking Equipment

    Dunlop 4.5X2 Aluminium 4 1/2X2 Springride Bellows Sp1457 Air Spring for Papermaking Equipment

    Dunlop 4.5X2 Aluminium 4 1/2X2 Springride Bellows Sp1457 Air Spring for Papermaking Equipment
    Dunlop 4.5X2 Aluminium 4 1/2X2 Springride Bellows Sp1457 Air Spring for Papermaking Equipment
    Dunlop 4.5X2 Aluminium 4 1/2X2 Springride Bellows Sp1457 Air Spring for Papermaking Equipment
