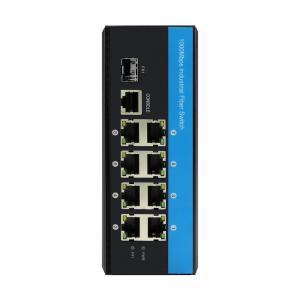

Poe Switch 8 Port RJ45+1*SFP L2 Managed
Gigabit Ethernet Switch IP40 Dual Power Input
Key Features of Industrial Network Switch
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 1000Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
Specificaiton of 8 port Gigiabit Poe Switch
| Product Name | 10/100/1000Mbps Managed Industrial POE Fiber Switch (1F+8TP) |
| Model No. | IM-FP188GW |
| Port | 1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP,
IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344,
IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af,
IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features | Transmission mode:storage and forward System bandwidth:58Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 30W (port 1~8) (802.3bt standards required special instructions) |
| Environment | Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working
humidity:10%～90%, non-condensing; Storage humidity:10%～95%,
non-condensing |
| Industry Standards | EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN
61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6
(CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC
60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail
Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information | Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | 3 years |
Application
Packing List:
| PACKING LIST | CONTENT | QTY | UNIT |
| Gigabit managed industrial PoE switch | 1 | SET |
| User Manual | 1 | PC |
| Removable Terminal Block | 1 | PC |
| Note: Industrial Managed POE Switch does not include the power
supply and SFP module. |
FAQ:
1.What is the power input?
A: For non-PoE managed switches, it receives DC12V~57V, for PoE
managed switches, it receives DC48V~57V.
All the models support redundant input.
2.Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just
configure 100M speed in the management interface, megabit modules
are working.
3.Can you supply a customized PVC label with my model on it?
A: Yes, there is description, model name and logo on the front PVC
mask, all is available for customization.
4.What is the packing list?
A: There is a device, protective foam, a user manual, a warranty
card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase
it from us separately.
5.What is the PoE output voltage?
A: Its DC48V for 802.3af/802.3at/802.3bt compliant powered devices
such as PoE cameras or PoE routers.
If the PD takes 24V power, then please use a PoE splitter to
connect our switch and powered device.
