Video Parking Guidance And Reverse Car Finding System Garage Parking Guidance System

Video Parking Guidance And Reverse Car Finding System Garage Parking Guidance System

Video Parking Guidance And Reverse Car Finding System

Parameter

System architecture

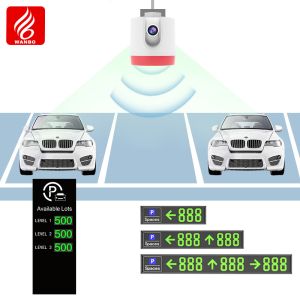

The video parking detector is an important part of the parking guidance system. It integrates the detector with the indicator light and install it in front of the parking space. It obtains the current image information of each parking space by video photo and transmits it to the server, and controls the parking indicator light to make the corresponding state display.

A video parking space detector consists of a detector body and an indicator light with a camera to obtain the parking space image information; and the integrated indicator light displays different state colors according to the instructions of the detector. The camera has internal 7-color indicators, red light, yellow light, blue light, green light, green light, white light, pink light. The default display color is set to, red: occupied space; green: empty space.

System introduction

The video parking guidance and reverse car finding system captures the image information ofthe parking space in real time by installing a video parking detector in firont of the parking space inthe parking lot. The video parking detector transmits the captured image information of the parkingspace to the video zone controller for parking status processing and license plate recognition. At thesame time, the video zone controller transmits the parking status information to the systemmanagement platform for data processing and stores it in the video centralized controller for unifiedmanagement. The system management platform will process all the parking status data and send theempty parking information of the corresponding area to the parking guidance screen for display, soas to realize the parking guidance function.
When the customer enters the parking lot again to pick up the car, he can enter the license platenumber through the car search query terminal installed at the exit entrance/elevator entrance of theparking lot. The query terminal obtains the data of the server database in real time, and displays themap of the parking lot where the owner is currently located on the screen. The map will indicate thelocation of the owner and the parking position of his vehicle. And according to the overall route ofthe parking lot, an optimal route is automatically displayed, so as to guide the ower to take the carquickly.

Product Features

1) Using standard network cable connection, greatly reducing the cost of wire and construction difficulty;

2) The overall use of industrial design, through strict testing, effectively ensure the reliable use of
equipment;
3) The equipment has short circuit, reverse connection and wrong connection protection design to prevent short circuit, reverse connection and wrong connection caused by wiring errors in construction, resulting in electrical damage to related equipment;
4) The power supply adopts industrial design, with short circuit, over load, over voltage protection
functions.

System flow

Case Images

Shenzhen Wanbo Technology Co., Ltd.
