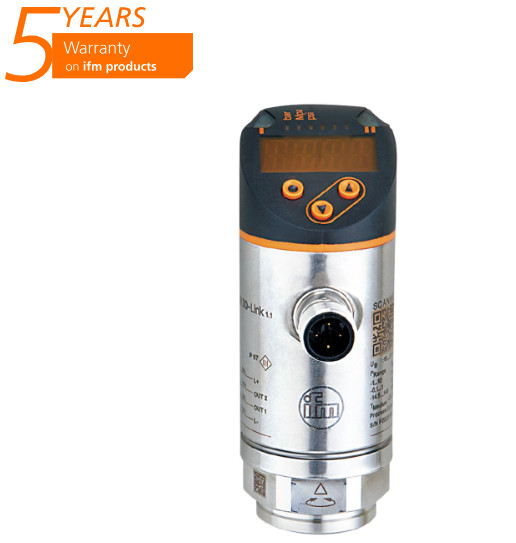

IFM Pressure sensor with display PN2071 PN-250-SER14-MFRKG/US/ in stock

IFM Pressure sensor with display PN2071 PN-250-SER14-MFRKG/US/ in stock

IFM Pressure sensor with display PN2071 PN-250-SER14-MFRKG/US/ in stock

• Two switching outputs, one of them programmable as IO-Link and one as analogue output
• Red/green display for clear identification of the acceptable range
• The process connection can be rotated for optimum alignment
• With long-term stability thanks to high overload protection
• Robust design for use in harsh industrial environments



  Product characteristics

  Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
  Measuring range	0...250 bar 0...3625 psi 0...25 MPa
  Process connection	threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)

  Application

  Special feature	Gold-plated contacts
  Measuring element	metallic thin film cell
  Application	for industrial applications
  Media	liquids and gases
  Medium temperature[°C]	-25...80
  Min. bursting pressure	1200 bar 17400 psi 120 MPa
  Pressure rating	500 bar 7250 psi 50 MPa
  Vacuum resistance	-1000 mbar -0.1 MPa
  Type of pressure	relative pressure

  Electrical data

  Operating voltage[V]	18...30 DC; (to SELV/PELV)
  Current consumption[mA]	< 35
  Min. insulation resistance[MΩ]	100; (500 V DC)
  Protection class	III
  Reverse polarity protection	yes
  Power-on delay time[s]	0.3
  Integrated watchdog	yes

  Inputs / outputs

  Number of inputs and outputs

  Number of digital outputs: 2; Number of analogue outputs: 1

  Outputs

  Total number of outputs	2
  Output signal	switching signal; analogue signal; IO-Link; (configurable)
  Electrical design	PNP/NPN
  Number of digital outputs	2
  Output function	normally open / normally closed; (parameterisable)
  Max. voltage drop switching output DC[V]	2
  Permanent current rating of switching output DC[mA]	250
  Switching frequency DC[Hz]	< 500
  Number of analogue outputs	1
  Analogue current output[mA]	4...20; (scalable 1:5)
  Max. load[Ω]	500
  Analogue voltage output[V]	0...10; (scalable 1:5)
  Min. load resistance[Ω]	2000
  Short-circuit protection	yes
  Type of short-circuit protection	pulsed
  Overload protection	yes

  Measuring/setting range

  Measuring range	0...250 bar 0...3625 psi 0...25 MPa
  Analogue start point	0...200 bar 0...2900 psi 0...20 MPa
  Analogue end point	50...250 bar 725...3625 psi 5...25 MPa

  Factory setting / CMPT = 2
  Set point SP	1.5...250 bar 25...3625 psi 0.15...25 MPa
  Reset point rP	0.5...249 bar 10...3610 psi 0.05...24.9 MPa
  Min. difference between SP and rP	1.5 bar 15 psi 0.15 MPa
  In steps of	0.5 bar 5 psi 0.05 MPa

  Status_B High Resolution / CMPT = 3
  Set point SP	1.6...250 bar 23...3626 psi 0.16...25 MPa
  Reset point rP	0.5...249 bar 8...3611 psi 0.05...24.9 MPa
  Min. difference between SP and rP	1.1 bar 15 psi 0.11 MPa
  In steps of	0.1 bar 1 psi 0.01 MPa

  Accuracy / deviations

  Switch point accuracy[% of the span]	< ± 0,4; (Turn down 1:1)
  Repeatability[% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
  Characteristics deviation[% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
  Hysteresis deviation[% of the span]	< ± 0,1; (Turn down 1:1)
  Long-term stability[% of the span]	< ± 0,05; (Turn down 1:1; per 6 months)
  Temperature coefficient zero point[% of the span / 10 K]	0,2; (-25...80 °C)
  Temperature coefficient span[% of the span / 10 K]	0,2; (-25...80 °C)
  Notes on the accuracy / deviation	switch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1%

  Response times

  Response time[ms]	< 1.5
  Delay time programmable dS, dr[s]	0...50
  Damping process value dAP[s]	0...4
  Damping for the analogue output dAA[s]	0...4
  Max. response time analogue output[ms]	3

  Software / programming

  Parameter setting options

  hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output

  Interfaces

  Communication interface	IO-Link
  Transmission type	COM2 (38,4 kBaud)
  IO-Link revision	1.1
  SDCI standard	IEC 61131-9
  SIO mode	yes
  Required master port type	A; (when pin 2 not connected: B)
  Supported DeviceIDs	Type of operation DeviceID Factory setting / CMPT = 2 460 Status_B High Resolution / CMPT = 3 639
  Note	For further information please see the IODD PDF file under "Downloads"

  Factory setting / CMPT = 2
  Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
  Min. process cycle time[ms]	2.3
  IO-Link resolution pressure[bar]	0.1
  IO-Link process data (cyclical)	function bit length pressure 14 binary switching information 2
  IO-Link functions (acyclical)	application specific tag

  Status_B High Resolution / CMPT = 3
  Profiles	Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
  Min. process cycle time[ms]	3
  IO-Link resolution pressure[bar]	0.1
  IO-Link process data (cyclical)	function bit length pressure 16 device status 4 binary switching information 2
  IO-Link functions (acyclical)	application specific tag

  Operating conditions

  Ambient temperature[°C]	-25...80
  Storage temperature[°C]	-40...100
  Protection	IP 65; IP 67

•
