PVD colored coating
During the process, first of all the stainless steel is cleaned to
make sure that the coating will bond well. The steel is then placed
in a vacuum chamber with a “target” metal; this will be used to
create the coating. A high vacuum level is needed in the coating
chamber, then a small amount of argon gas is introduced. A high
voltage circuit is used in order for the stainless steel and target
to bond or adhere. This allows the argon ions to bombard the target
to release atoms of the target metal, which are deposited on the
stainless steel substrate as the coating. This PVD process is
called sputtering; resulting in the deposition of plasma on the
stainless steel surface which gives it its new strength and shine.The coloured surface coatings that can be obtained using PVD
include: gold (TiN), rose gold (ZrN), bronze (TiAlN), blue (TiAlN),
black (TiAlCN), as well as a dark red (ZrN). This ceramic coating
which is produced is very thin, making the texture of the
underlying finish still visible. These PVD colours will not fade
over time and have the benefit of being more uniform in appearance
and more abrasion-resistant than colouring which is done by the
electrochemical processes.
Name | Custom Outdoor Abstract Modelling Art Stainless Steel Sculptures
Mirror Finish |
Grade | SUS 304, SUS 316, SUS201,SUS430,etc. |
Standard | JIS, AISI, ASTM, DIN, TUV, BV, SUS or customer request,etc. |
Dimension | Customized: customer request |
Finish | Mirror , Hairline , Bead Blasted |
Color | Silver or customer request |
Application | Outdoor/Indoor Decoration |
Lead Time | Drawing time: 4days after receipt 30% deposit, production time:
20-25 days after confirm drawing. If you have rush order pls
contact us |
Payment Terms | 30%T/T of invoice total value, 70% balance should be paid before
shipment or L/C.If you have others idea pls contact us |
Packing | PVC/PE Film+Pearl cotton+Bubble bag+ Waterproof Paper + Wooden
Pallet |
Contact Trasa whatsapp:8613724918755 Online reply quickly
Product Testing
The process of PVD coating
During the process, first of all the stainless steel is cleaned to
make sure that the coating will bond well. The steel is then placed
in a vacuum chamber with a “target” metal; this will be used to
create the coating. A high vacuum level is needed in the coating
chamber, then a small amount of argon gas is introduced. A high
voltage circuit is used in order for the stainless steel and target
to bond or adhere. This allows the argon ions to bombard the target
to release atoms of the target metal, which are deposited on the
stainless steel substrate as the coating. This PVD process is
called sputtering; resulting in the deposition of plasma on the
stainless steel surface which gives it its new strength and shine.
The coloured surface coatings that can be obtained using PVD
include: gold (TiN), rose gold (ZrN), bronze (TiAlN), blue (TiAlN),
black (TiAlCN), as well as a dark red (ZrN). This ceramic coating
which is produced is very thin, making the texture of the
underlying finish still visible. These PVD colours will not fade
over time and have the benefit of being more uniform in appearance
and more abrasion-resistant than colouring which is done by the
electrochemical processes.
Wear and weather resistant
The stainless steel’s original texture and structure is not changed
however the PVD process not only increases the product’s longevity
but also reduces its maintenance. Although it has been used for
applications that need to be wear and weather resistant, like door
hardware, it is important to say that the colour can be damaged if
it is attacked very aggressively and in some instances may not be
repairable. PVD lasts longer than other coatings which are a
similar thickness.
An environmentally friendly process
The PVD process is also more environmentally friendly than
alternatives such as electroplating and painting. Unlike these
there are no gases, water waste and other residue released. Also
important to note is that the colouring process does not limit the
recycling value of the stainless steel.
Architectural
PVD coloured stainless steel is well used in the architectural and
industrial design industry. Examples include;- stainless steel
curtain walls, cladding and profiles for hotels and casinos,
shopping centres, railway stations and for the facades and fit-outs
of high-end retail stores.
Mirror-polished stainless steel: properties and advantages
In principle, we differentiate here between technical applications,
which, for instance, require the requested surfaces to have the lowest possible roughness (Ra value).
Such properties play a major role especially in applications like
container- and silo-manufacturing, mechanical engineering, food and
medical technology, where adhesion to the inox surfaces has to be
avoided by using material that is as smooth as possible.
Other customers request a certain reflectivity from the metal
finish, for example in the lighting industry.
Another increasingly popular use of mirror-polished stainless steel
sheets is found in architecture, shopfitting, yacht and
shipbuilding, where the focus is very strongly on an optically
first-class result in terms of the visual quality of the stainless
steel sheets.
In addition to a flawless appearance, more advantages of a mirror
finish are the low weight ratio compared to glass mirrors, the very
good workability and, immensely important when used in public
buildings or other highly frequented locations such as train
stations, airports and others, mirror-finish stainless steel plates
are unbreakable, fireproof and vandal-proof.
304 Stainless Steel PVD Vibration Bronze Stainless steel sheet
China
Stainless steel customized 3D drawing offer then quotation
Before mass production stainless steel PVD color ,we will check
sample color first
Application

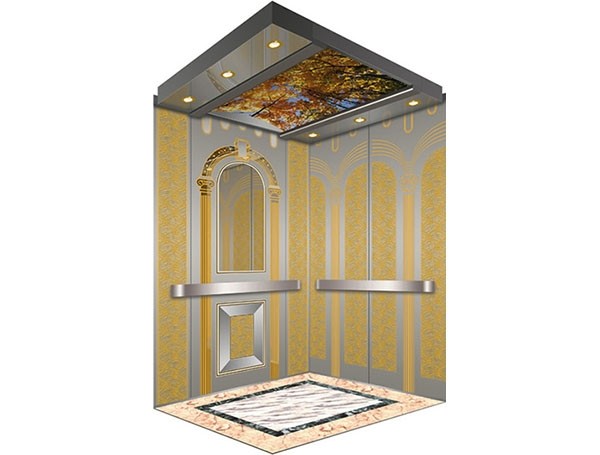

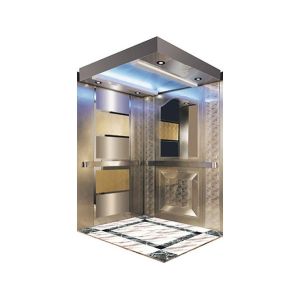

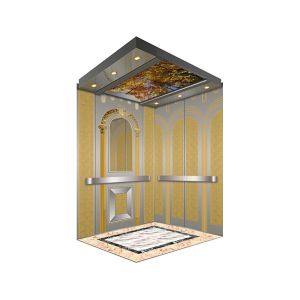

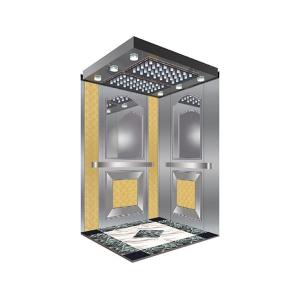

Be extensively applied to architectural & interior decoration, such
as elevator decoration, luxurious doors, wall decoration, advertisement nameplates, sanitary ware, ceiling
decoration, corridor, hotel hall, shop facade, etc.
Construction Decoration / Interior Decoration /Entrance Hall Decoration/Lobby Decoration/Five-star Hotel Decoration./Elevator Car Decoration/Luxry Shop Decoration/Office Decoration
Colored Stainless Steel Sheet for Wall Cladding
Wall Cladding – Stainless Steel sheets to cover and protect your
walls, Trim Molding – Used to attach wall cladding and provide an
aesthetic for covering seams between sheets and around corners.
These panels offer a clean and bright look that can stand up and
easily wiped clean of dirt, grime, and fingerprints. Wall panels
are Similar to wall protection such as corner guards, push plates,
kick plates, and chair rails the surface can take abuse from bumps
and scratches and still maintain a bright and clean appearance.
Packing And Loading
Foshan Mingxinlong Stainless Steel Co., Ltd.
MXL is a professional stainless steel product supplier, focus on
colored stainless steel products and surface treatment. Our factory
has passed the ISO9001 and SGS certification. And it owns many
kinds of stainless steel surface treatment machines, such as 8k
mirror polishing production line,matting/satin/hairline machines,
PVD Titanium Plating equipment (Physical Vapor Deposition), etching
production line, sandblasting equipment,provide you with high
quality products.
MXL research & develop the newest stainless steel surface treatment
technology and supply many stainless steel products. include
colored plate , decorative trim strips, colored partition screen
products,display frames,wine cabinet etc. Provide you a ONE-STOP
solution and services to buying stainless steel product from China.
While focusing on color stainless steel products, we are still able
to provide many stainless steel raw materials, such as stainless
steel coil, plate, pipe, profile, etc. Warmly welcome customers all
over the world to contact us for future business relationships and
mutual success!
FAQS
1.Q:Are you factory or trading company?
A:We are factory company,which is locate in Foshan City, near
Guangzhou south railway station and subway.
2.Q:Provide OEM/ODM service?
A:Off course.We will provide professional solutions and quality
products. Please don’t hesitate to contact.
3.Q:How long can make delivery?
A1:For stock products,will make shipments in 2-5 days after
receiving deposit or receiving T/T;
A2: For products need new production for common materials,usually
make shipments in 7-10 days;
A3: For products need new products for special and rare
materials,usually need 15-20 days to make shipment.
4.Q: Can I get samples?
A: Surely! Free sample are provided.
5. Q:What's your payment terms?
A: 30%T/T of invoice total value, 70% balance should be paid before
shipment or L/C.If you have others idea pls contact us
6.Q:How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.If needed, Third
Party Inspection is acceptable.
7.Q:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional. For mass
products, ship freight is prefered. By sea also
