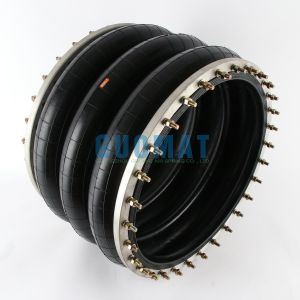

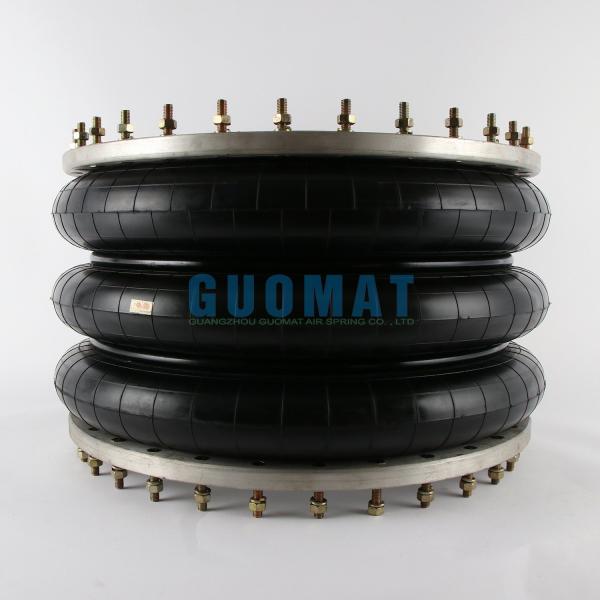

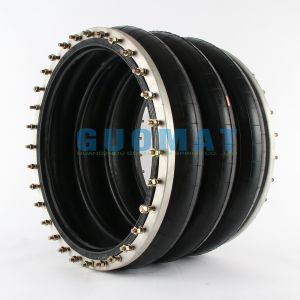

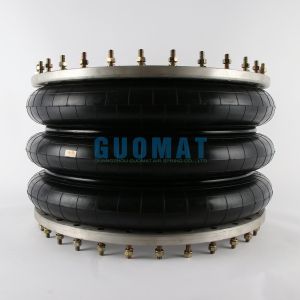

    GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3H630376
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring

    GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring


    Air Spring Introduction


    For nearly a century, air springs have been integral to heavy-duty vehicle suspension systems, leveraging the compressed air already used for braking systems. They offer significant advantages over traditional mechanical leaf or coil springs. One key benefit is enhanced comfort—adjusting air pressure within the spring alters the spring rate, improving ride quality. Additionally, this variable air pressure control allows for deck or trailer height adjustment, enabling seamless alignment with loading docks even without dock plates.



    3H630376 Industrial Air Spring Technical Data


    Rubber Bellow Diameter: 720mm (0.7 Mpa)

    Bottom and Top Diameter: 642mm

    The Screw: M10

    Number of Screw: 32 pieces
    Pass Through: 580 mm

    Minimal Compression: 122 mm

    Elongation: 436 mm

    The Working Stroke: 314 mm

    We Can Offer Other Triple Convoluted Air Bellows
    3B12-3043B12-305FT 330-29 CISP2910
    3B14-3513B14-353FT 430-32 CISP2895
    3B14-3543B15-375FT 530-32 CISP2923
    3B15-3763B15-377FT 530-35 CISP2861
    3B15-378FT 960-34 CISP2863
    FT 1330-35 CISP1539
    SP1542
    SP1558
    SP2141

    Versatile Applications of Air Springs


    - Off-highway vehicles: Enhance suspension, ride comfort, and stability in construction, agricultural, and mining equipment.
    - Press equipment: Serve as actuators for part extraction and operations.
    - Testing systems: Act as vibration isolators in motion simulators, reducing shock and noise.
    - Precision machinery: Isolate vibrations and ensure leveling in equipment like printing presses.
    - Textile machinery: Deliver smooth operation, improve product quality, and reduce equipment wear.
    - Paper mill machinery: Provide suspension, leveling, and vibration isolation to ensure efficiency.
    - Cheese and dairy equipment: Offer stability and performance tailored to industry-specific needs.



    Company Profile

    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

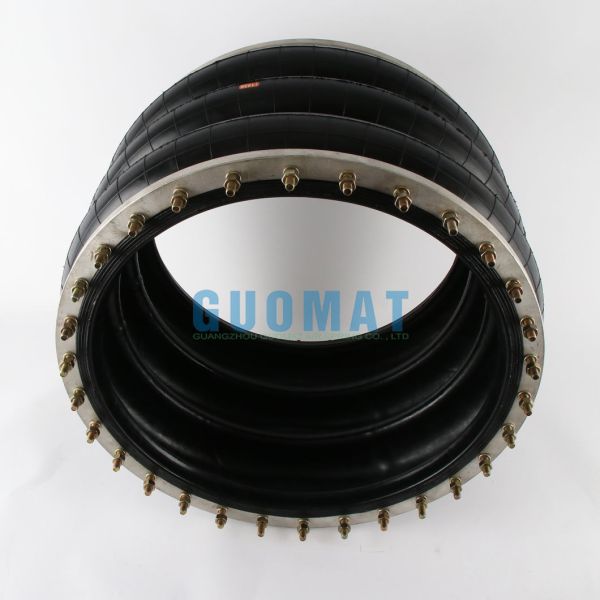

    3h630376 Industrial Air Help Spring with Flange Ring

    Product Images

    3h630376 Industrial Air Help Spring with Flange Ring3h630376 Industrial Air Help Spring with Flange Ring3h630376 Industrial Air Help Spring with Flange Ring3h630376 Industrial Air Help Spring with Flange Ring3h630376 Industrial Air Help Spring with Flange Ring
