2800mm 3000mm 3200mm Sliding Table Panel Saw Machine Woodworking Cutting Saw

Ask Lasest Price
Supply Ability :	100 Set/Sets per Month
Price :	CN¥13,157.82/pieces 1-2 pieces
Brand Name :	GTS

Add to Cart

Product Details
Company Profile

2800mm 3000mm 3200mm Sliding Table Panel Saw Machine Woodworking Cutting Saw

2800mm/3000mm/3200mm Sliding Table Panel Saw Woodworking Cutting Saw 650 KG Weight Capacity 60mm Max. Cutting Height At 45°

2800mm/3000mm/3200mm Sliding Table Panel Saw Woodworking Cutting Saw

Sliding table length 2800mm, 45 and 90 degree, Overload protect. Double layers, Control panel power is 24v, Big ruler with inch and mm. Open door, cutting power.

A Machine, Multi-Functional Woodworking Cutting Saw

You can customize the product

We can supply different types of cutting board saws

Woodworking Cutting Saw Feature:

This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.

Superstar Brand Panel Saw , providing various size and models. With 20years experience , we accpet ODM and OEM according to requirements. Besides, we can suggest the suitable woodworking production line based on customer's factory and personnel situation.

MJ-45
Dimension of sliding table	2800*375mm	Main motor power	4kw
Cross cut capacity	2800mm	Scoring saw blade diameter	120mm
width of cut between saw blade and rip fence	1250mm	Speed of scoring saw blade	8000
Saw blade diameter	300mm	Scoring spindle diameter	20mm
Height of cut	80mm	Scoring motor power	0.75kw
Speed of main saw spindle	4500/6000	New weight	650kg
Main spindle diameter	30mm	Overall dimensions	28002600950mm
Tilting saw blade	0-45	packing size	28001100950mm

Other Types Of Sliding Table Saw

Model	MJ6128-45Y	MJ6128-90Y	MJ6128-45Z	MJ6128-90Z
Sliding table length	2800mm	2800mm	2800mm	2800mm
Max.Extent height of main saw blade	80mm	80mm	80mm	80mm
Saw group titled angle	0-45°	90°	0-45°	90°
Main diameter	250-300mm	250-300mm	250-300mm	250-300mm
Main spindle rotation speed	4000/6000r.p.m	4000/6000r.p.m	4000/6000r.p.m	4000/6000r.p.m
Main saw motor power	4kw	4kw	4kw	4kw
Scoring blade rpm	8000r.p.m	8000r.p.m	8000r.p.m	8000r.p.m
Scoring motor	0.75kw	0.75kw	0.75kw	0.75kw

Model	MJ6138-45Y	MJ6138-45Z	MJ6138-90Y	MJ6138-90Z
Sliding table length	3800mm	3800mm	3800mm	3800mm
Max.Extent height of main saw blade	80mm	80mm	80mm	80mm
Saw group titled angle	0-45°	0-45°	90°	90°
Main diameter	250-300mm	250-300mm	250-300mm	250-300mm
Main spindle rotation speed	4000/5600r.p.m	4000/5600r.p.m	4000/5600r.p.m	4000/5600r.p.m
Main saw motor power	3-5.5kw	3-5.5kw	3-5.5kw	3-5.5kw
Scoring blade rpm	8000r.p.m	8000r.p.m	8000r.p.m	8000r.p.m
Scoring motor	0.75kw	0.75kw	0.75kw	0.75kw
Scoring diam	120mm	120mm	120mm	120mm

Detailed Images

Application:

Panel Saw Machine application

CX - MJ45 Sliding Table Precision Panel Saw,Small body, small invest, small space needed, multifunction!

Not only for Furniture factory, board factory, construction industry, etc.

How Can I Get It In My Office

Wrapping panel saw with double-layer pearl cotton, wrapping and fix the internal packing belt, lubricate cnc wood machine bearing, guide rail and other oil to prevent rust during transportation, and effectively ensure the accuracy of superstar cnc machine. It's very simple and safe.

Packing Size: L2800mm * W1100mm * H950mm

Gross Weight: 650KG

Delivery lead time: 7 working days after receipt of down payment.

We have regular forwarder to send machine to you by sea, or by train . And rich experience to guide clients.

You can always rely on us !

Please feel free to send us inquiry or message to know more about the shipping Response will be within 10 minutes during working time, And within 8 hours during off duty time

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Please Feel Free To Send Us Inquiry Or Message To Know More About The Shipping Response Will Be Within 1 Minutes During Working Time, And Within 6 Hours During Off Duty Time.

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Please feel free to send us inquiry or message to know more about the machine

Response will be within 10 minutes during working time, And within 8 hours during off duty time

If you haven't found the machine you need, don't hesitate to contact us too. We
Superstar had been in this industry since 2003, will do best to give you the best suggestion

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Qingdao Xincheng Information Technology Co., LTD
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

2800mm 3000mm 3200mm Sliding Table Panel Saw Machine Woodworking Cutting Saw

2800mm 3000mm 3200mm Sliding Table Panel Saw Machine Woodworking Cutting Saw

2800mm 3000mm 3200mm Sliding Table Panel Saw Machine Woodworking Cutting Saw

2800mm/3000mm/3200mm Sliding Table Panel Saw Woodworking Cutting Saw

Woodworking Cutting Saw Feature:

3200mm Sliding Table Panel Saw

2800mm Woodworking Cutting Saw

2800mm 3000mm 3200mm Sliding Table Panel Saw Machine Woodworking Cutting Saw

You May Like

1325 Woodworking CNC Automatic Tool Changing Machine With 9.0KW Atc Air Cooling Spindle

45 Degree 90degree Wood Mdf Board Cutting Panel Saw Woodworking Machine 380V

3 Axis Fiber Laser Cutting Machine 1000W 2000W 3000W For Stainless Steel

1325 CNC Wood Router Machine With DSP Controller System For MDF Solid Wood Engraving

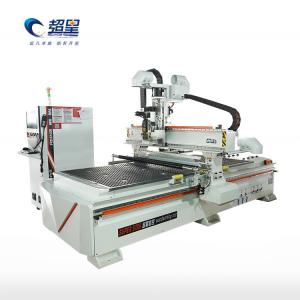

1325 CNC Wood Engraving Machine With Automatic Tool Changer 1300x2800x200mm
