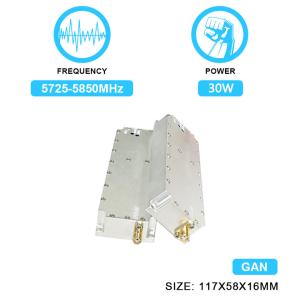

    Anti Drone Module 30W 5.8g Drone Jamming Uav Signal Jammer Module With GAN And Isolation Protector

    Ask Lasest Price
    Brand Name : OEM/ODM
    Model Number : JYT-G5.8-30
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T
    Delivery Time : 1-3 working days after payment received
    • Product Details
    • Company Profile

    Anti Drone Module 30W 5.8g Drone Jamming Uav Signal Jammer Module With GAN And Isolation Protector

    Product Parameters




    Main Components :

    1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

    4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage


    1.RF Data

    ItemSpec.Remarks
    Frequency Range(MHz)5725-5850Bandwidth Range±10MHz
    Working Voltage28V24-30V
    Analog sweeping speed250KHz
    Output Power (Max)≥44dBm30W
    Gain (Max)47±1 dB
    Ripple in Band≤ 3dBPeak
    Bandwidth adjustmentYesBy screw
    Center adjustmentYesBy screw
    Enable controlYes24-28V
    Output VSWR≤3
    Working current@+28V dc≤3A
    High Low Temperature testWorking Temperature-20~+65℃Working properly
    Gain Stability±1 dBat -20℃~+55℃
    Power stability±1 dBat -20℃~+55℃
    Power supply PortPositive and negative lines24-28V; GND
    RF output connectorSMA-Female
    LED indicator lightPower ON/OFF
    Dimension117*58*16 mm
    Screw Size4-Ø3.20 mm
    Weight180g

    2.Size


    Detailed Photos






    Spectrum data





    For more details,Please don't hesitate to send us your inquiry.
