    Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-NBQ833
    Price : 9100dollars/set
    Payment Terms : L/C
    Supply Ability : 25sets/month
    Delivery Time : 40 work days
    • Product Details
    • Company Profile

    Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power

    Burn-In Test System For Large Photovoltaic Inverters Current Power Converter

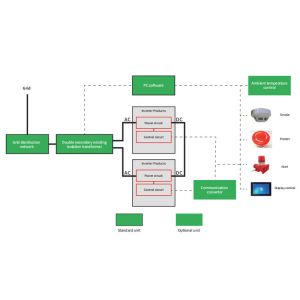

    Architecture diagram
    Performance parameters
    SystemSystem structure1 control cabinet + 2 transformer cabinets
    Overall size3500*1200*1900mm
    Total floor area3500*1500mm(Including operation area)
    Total input voltageThree-phase five-wire system 220Vac (rated)
    Total input current200A*2
    Total input power100kW*2
    Application ambient temperature0-40℃
    Application environment humidity0-95%
    Fire protection requirementsMaterials meet UL 94V0 rating
    Environmental requirementsMaterials comply with Rohs, WEEE requirements
    Safety requirementsComply with IEC62368 international standard design requirements
    Burn-in cabinetUnits/Cabinet2 bits/cabinet
    Input winding current200A
    AC Connector TypeBolt bronze
    Signal Connector TypePA45 (L /N/PE)
    Input power100kW
    Feedback power500kW
    Volume size1200*1200*1900mm
    Product area air duct directionDownwind, upwind
