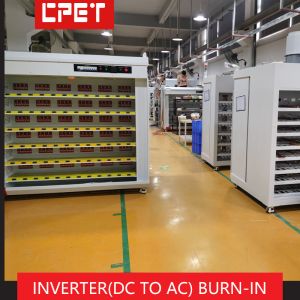

    Energy Recovery Burn-In Cabinet with RS485 Communication and 40 Inverters Capacity for Feedback Type Inverter Aging Testing

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-NBQ835
    Price : 8780dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    Energy Recovery Burn-In Cabinet with RS485 Communication and 40 Inverters Capacity for Feedback Type Inverter Aging Testing

    Energy Saving Feedback Burn-In Cabinet Inverter (DC To AC) Converter Reflux


    Outstanding functions
    1. The software sets load parameters and monitors the voltage, current, and power parameters in real time
    2. CP load mode
    3. Energy saving and conversion efficiency is above 85%
    4. Use it with the power burn-in monitoring software
    5. Multiple DC conversion board interfaces meet different output interface requirements
    Performance parameters
    Burn-in cabinet
    structure and
    Burn-in quantity
    planning
    Trolley size (mm)L2050*W1085*H2050mm (size of a single Burn-in cabinet)
    Number of trolley layers5layers, product area depth 400mm, (8 Burn-in positions per layer)
    Trolley height220mm
    Trolley structure materialcold rolled sheet
    Load area cooling methodTop turbine exhaust fan top row type (easy to control the ambient temperature)
    Layer insulation and anti-static methodEpoxy insulation board with heat dissipation holes on the surface
    Overall burn-in room structureAdopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
    Introduction to energy recovery module
    configuration, power of the tested power
    supply and Burn-in quant
    Energy recovery module control methodRS485 communication mode, upper computer uses RS232 communication mode
    Install the energy recovery module modelCP8401(See specification for details)
    Number of energy recovery modules
    installed
    There are 8 4CH modules on each floor, and 40 modules need to be installed in the whole burn-in cabinet
    Energy recovery module design
    architecture
    No relay, long life design scheme (independent intellectual property rights)
    Energy recovery module isolation modeElectronic load module channel adopts photoelectric isolation (communication and power supply isolation)
    Energy recovery module design
    architecture
    No relay, long life design scheme (independent intellectual property rights)
    Number of burn-in products in the entire cabinetBurn-in of one cabinet There are 40 inverters with 40 DC inputs (10 to 60V/25A) and AC outputs (85 to 260V/30A/2.4W)
