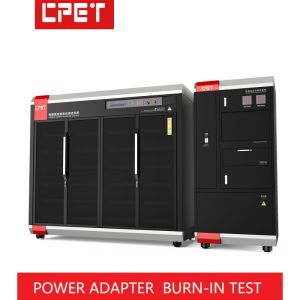

    100W/CH Burn In Test Cabinet with 192CH Capacity and 2-100V Range for Power Adapters and USB Chargers

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-300903
    Price : 7600dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 30 work days
    Certification : CE,ROHS
    • Product Details
    • Company Profile

    100W/CH Burn In Test Cabinet with 192CH Capacity and 2-100V Range for Power Adapters and USB Chargers

    Burn-In Test Cabinet For TYPE-C Power Adapter USB Charger Manufacturer Customized




    Application Scope


    Power sources such as chargers, power adapters, wireless charging, Power Tool Charger,

    Sweeper Charger,etc.


    excellent function

    1. Interface of multiple DC adapter plates can meet the demands for different output
    interface products

    2. Be of optional multiple laminate structures at products zone and meet the requirements for
    more convenient operation ofdifferent products

    3. Be of AC parameters measurement module and testing power input characteristics(optional)
    Performance parameters
    ModelCP-300903
    Power of single channel100W/CH
    Quantity of
    load channels
    192CH
    Scope of load voltage2-100V
    Scope of load current0.2-10A/CH
    Load precision±(1%+0.1%FS)
    Load ModelEnergy Saving
    Load ModeCC+CV Mode
    Number for plies of product zoneSingle side
    Height for plies of product zone(mm)170
    Width of products zone(mm)Series CC mode 340
    Temperature control of products zoneTemperature control type of products zone: normal temperature-60℃
    Structure material of trolleyElaborately processed and produced with cold-rolled sheet
    Mode of main controlMonitoring software for burn-in of computer-monitoring type power
    Input mode of UUTMulti-purpose socket/speaker wire clip/custom design
    Interface mode of UUTConnecting fixture boards (with various specifications) for first choice/custom design
    Customizable fast charge functionQC, PO, FCP, SCP, PPS, etc.
    External dimension2050*880*1900/custom design
