Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers

    Buy cheap Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers from wholesalers

    Buy cheap Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers from wholesalers
    • Buy cheap Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers from wholesalers
    • Buy cheap Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers from wholesalers

    Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers

    Ask Lasest Price
    Brand Name : CPET
    Model Number : CP-301003
    Price : 7700dollars/set
    Payment Terms : L/C
    Supply Ability : 30sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Energy Saving Burn-In Rack with 2-100V Range and Temperature Monitoring for Lead Acid Battery Chargers

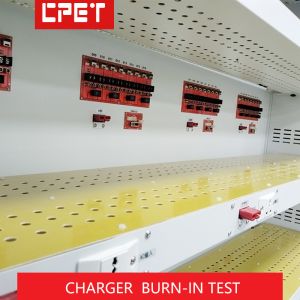

    Burn-In Rack For Lead-Acid Battery Electric Bicycle Charger ODM/OEMCustomized




    Application Scope


    Power sources such as chargers, power adapters, wireless charging, Power Tool Charger,Sweeper Charger,etc.


    excellent function

    1. Be of automatic voltage switching function (optional)
    2. Be of temperature monitoring function at products zone (optional)
    3. Efficiency of energy saving conversion over 85%
    Performance parameters
    ModelCP-3010
    Power of single channel65W/CH
    Quantity of load channels192CH
    Scope of load voltage2-100V
    Scope of load current0.2-10A/CH
    Load precision±(1%+0.1%FS)
    Load ModelEnergy Saving
    Load ModeCC+CV Mode
    Number for plies of product zoneSingle side
    Height for plies of product zone(mm)170
    Width of products zone(mm)Series CC mode 340
    Temperature control of products zoneTemperature control type of products zone: normal temperature-60℃
    Structure material of trolleyElaborately processed and produced with cold-rolled sheet
    Mode of main controlMonitoring software for burn-in of computer-monitoring type power
    Input mode of UUTMulti-purpose socket/speaker wire clip/custom design
    Interface mode of UUTConnecting fixture boards (with various specifications) for first choice/custom design
    Customizable fast charge functionQC, PO, FCP, SCP, PPS, etc.
    External dimension2050*880*1900/custom design
