T-Flex Pull-Only Control Cable – Technical Specifications

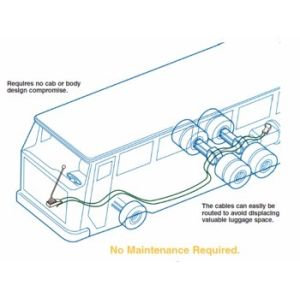

Phidix’s T-Flex control cables are engineered for pull-only motion
control, built with a high-tensile carbon steel core and durable
outer sheath. We provides the key technical specifications and dimensional
drawings to support system integration, engineering decisions, and
custom configurations.
Key Specifications
| Feature | Specification |
| Stroke Range | 1.0" – 3.0" (25–76 mm) |
| Minimum Bend Radius | 5 inches (127 mm) |
| Load Capacity | Up to 3000 lb |
| Outer Cable Diameter | 7.5 mm (typical) |
| Cable Core | High-tensile carbon steel strand |
| Sheath Material | olypropylene (standard) / High-temp plastic |
| Temperature Range | -54°C to +110°C (-65°F to 185°F) |
For high-load, low-deflection applications, T-Flex cables maintain
accurate performance even under vibration and repeated actuation.
Compatible End Fittings
T-Flex control cables support a variety of end fitting types, each
suited to different mounting systems:
• Rod Ends: Threaded stems for direct lever actuation
• Clevises & Yokes: For linkage-based connections
• Knobs / Eye Ends / Ball Heads: Panel or rotary installations
• Screwed or Headed Sleeves: Support structure stability
Download Full End Fitting Drawing PDF Pull_Only_T_Flex.pdf
Technical Drawings
Below are dimensional diagrams common T-Flex cable fitting options
and mounting configurations.
• Screwed Sleeve End
• Clevis End with Threaded Stem
Note: For complete dimensional specifications across all fitting
types, download our full technical guide.
Need a Customized Technical Specification?
Provide us your stroke, load, operating temperature, and connection
style. Our engineers will design a matched pull-only cable assembly for
your application.
Contact Phidix for engineering assistance or CAD models.
