    Sensor Based User Friendly Surveillance Radar System

    Ask Lasest Price
    Certification : ISO
    Brand Name : OEM
    Supply Ability : 100pieces/Year
    • Product Details
    • Company Profile

    Sensor Based User Friendly Surveillance Radar System

    Basic Information
    Model NO.RS1500A
    Operating frequency24GHz-24.25GHz
    Swept bandwidth30MHZ
    Data rate3HZ
    Azimuth scan range±45°
    Pitch coverage15°
    Maximum number of objects that can be detected100
    Maximum Detection Range1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
    Minimum travel distance≤5m
    Target velocity range0.5m/s~35m/s(1.8km/h~126km/h)
    Packaging & Deliver
    weight≤5kg
    Structural dimensions350mm×350mm×55mm
    Ingress protectionIP66
    User-Friendly Surveillance Radar System with Rj-45 Connectivity Options
    Radar Operational BlueprintUser-Friendly Surveillance Radar System with Rj-45 Connectivity Options
    User-Friendly Surveillance Radar System with Rj-45 Connectivity Options

    User-Friendly Surveillance Radar System with Rj-45 Connectivity OptionsUser-Friendly Surveillance Radar System with Rj-45 Connectivity Options


    peculiarity


    Our RS1500A radar offerings are meticulously engineered to seamlessly detect moving objects, including individuals, vehicles, and boats, within its field of view. The system skillfully reports their distance, azimuth, and velocity while adeptly managing multiple target reporting simultaneously. Leveraging this precise data, it's perfectly compatible with cameras and other optoelectronic devices for comprehensive tracking, accurate positioning, precise identification, and detailed event recording.

    Radar takes on a proactive detection role across various environments. Its applications span smart shipping, fishery conservation, collision prevention for bridges, ship flow oversight, and fishery management. It excels in detecting water vessels, safeguarding infrastructures like substations, detention facilities, and oil pipelines. Additionally, it fortifies airport perimeters, secures railway lines, manages highway traffic, and monitors other transit infrastructures. The radar sensor promises superior performance paired with competitive pricing and an open interface, ensuring seamless integration with cameras or infrared technology.


    Key Features

    Primarily designed for the border security and defense of critical locations, it excels in monitoring personnel, vehicles, ships, and other targets within its domain. Key attributes include:

    Diverse Transceiver Channels: Incorporating 3 transmitters and 32 receivers within a Frequency Modulated Continuous Wave (FMCW) radar, enhanced by a phased array system.
    Enhanced Detection Capability: Capable of detecting pedestrians over 1,000 meters and vehicles or boats beyond 2,000 meters.

    Exceptional Measurement Precision: Achieves angle measurement accuracy of 0.3°, with ranging precision reaching 2 meters.
    Supports a spectrum of operating frequency bands to mitigate co-channel interference.

    Facilitates defense zone delineation to effectively suppress false alarms outside core areas.

    Employs cutting-edge machine learning algorithms to aid in the identification and differentiation of large and small targets, allowing for targeted customer screening.

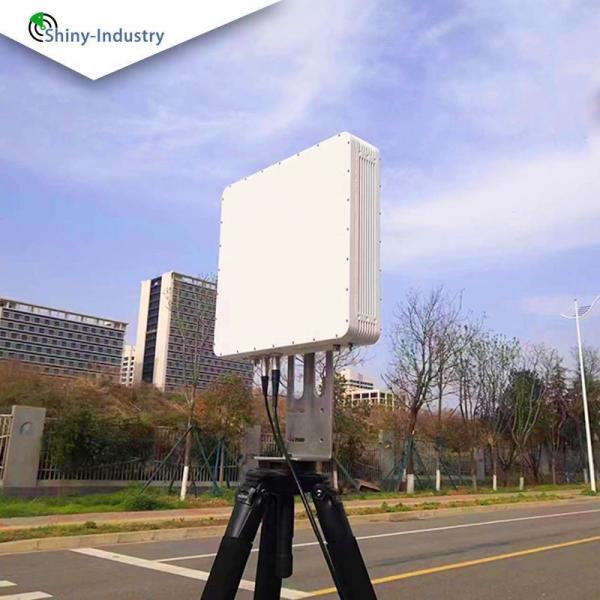

    Quality Sensor Based User Friendly Surveillance Radar System for sale
