Rod-Type Fuel Sensor Description
Oil Level Gauge diesel Generator Fuel Tank Level Real Time Oil
Monitoring Sensor For Truck Equipped
The Rod-Type Fuel Sensor is a precision-engineered device designed
to accurately measure and monitor fuel levels in various types of
fuel tanks. This sensor is ideal for applications in automotive,
marine, industrial, and agricultural machinery, where reliable fuel
level monitoring is essential for efficient operation and
maintenance.
Rod-Type Fuel Sensor Key Features:
- High Accuracy: The sensor provides precise and reliable fuel level readings,
ensuring optimal fuel management and preventing unexpected
run-outs.
- Durable Construction: Built with robust materials, the sensor is resistant to corrosion,
wear, and harsh environmental conditions, making it suitable for
long-term use in demanding environments.
- Easy Installation: The rod-type design allows for straightforward installation in
most fuel tanks, with compatibility for a wide range of tank sizes
and configurations.
- Wide Compatibility: The sensor is compatible with various types of fuels, including
diesel, gasoline, and other liquid fuels, making it versatile for
different applications.
- Low Maintenance: Designed for minimal maintenance, the sensor ensures consistent
performance with little need for frequent adjustments or
replacements.
- Customizable Length: Available in various lengths to suit different tank depths,
ensuring a perfect fit for your specific requirements.
- Integrated Electronics: Equipped with advanced electronic components, the sensor provides
stable and accurate signal output for integration with fuel
monitoring systems or gauges.
Rod-Type Fuel Sensor Main Specification
| Item | Performance parameters |
| Collection principle | Capacitance |
| Size | 100mm to 1500mm(minimum can be detected100mm,maximum can be detected 1500mm) |
Electrical parameters | Input DC:4—70V |
Power Consumption | 0.13W/5V, 0.19W/12V, 0.38W/24V |
Signal output (can be customized) | Voltage output:0—5V |
Signal output (can be customized) | Digital output:RS-232 RS-485 |
Signal output (can be customized) | Analog resistant output:10—500Ω |
Signal output (can be customized) | Current output: 4—20mA |
Signal output (can be customized) | Communication baud rate:2400,4800,9600,57600,115200 |
Detection of liquid type | Diesel, bio diesel, kerosene, gasoline, etc. |
Use of the environment | Work temperature:-40℃~+85℃ |
Use of the environment | Save temperature:-40℃~+105℃ |
| Material | Aluminum alloy |
| Protection class | IP67 |
Applications:
- Automotive: Trucks, buses, and heavy-duty vehicles.
- Marine: Boats, yachts, and other marine vessels.
- Industrial: Generators, construction equipment, and machinery.
- Agricultural: Tractors, harvesters, and other farming equipment.
Rod-Type Fuel Sensor Photos

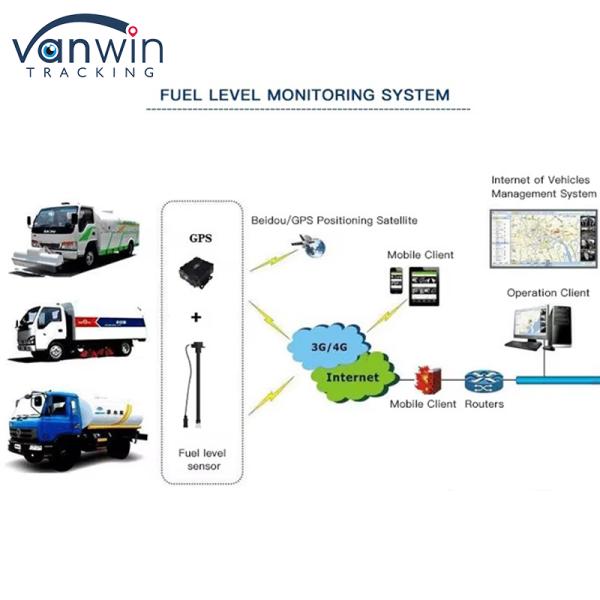

Platform Sceenshot:Rod-Type Fuel Sensor
FAQ:Rod-Type Fuel Sensor
Q1: Do you have your own factory?
A1: We are the fuel level sensor manufacturer and tracking software
platform operator with 6 years of experience.
Q2:Why choose us?
A2:AoooG is a multifuncitional GPS tracking and IoT platform used
for mobile and stationary assets tracking and integrated with
more than types of GPS tracking devices, our products and services
have covered more than 80 countries and regions around the
world and enjoy high brand awareness and reputation in America,
Africa, Asia and Europe.
Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but
also IOS/Android/Huawei APP.
Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also
software functionalities, UI design.
Q5: What is the MOQ?
A5: MOQ will be 2pcs.
Q6: What's your delivery time?
A6: For samples, 2-5 days, bulk order, 5-15 days generally.
Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.
Q8: Can we have our logo or company name to be printed on your
products or the package?
A8: Yes, of course.
Q9: What is the Warranty period of your products?
A:9: 12 months.
Q10: If the products have quality problems, what after-sale service
I can get?
A10: Online chat service, remote technology support and platform
service.
Contact us ASAP if any problem with the products.
