8CH AI Mobile DVR With ADAS DMS BSD Description
8CH 1080p 4G AI Mobile DVR With ADAS DMS BSD Camera System GPS
Mobile DVR For Truck
The 8CH AI Mobile DVR is a cutting-edge in-vehicle surveillance and
safety system designed to provide comprehensive monitoring and
advanced driver assistance features. Equipped with Artificial
Intelligence (AI), this device integrates Advanced Driver
Assistance Systems (ADAS), Driver Monitoring System (DMS), and
Blind Spot Detection (BSD) to enhance road safety and driving
efficiency.
8CH AI Mobile DVR Key Features:
1.8-Channel Recording:
- Supports up to 8 cameras, providing 360-degree coverage around the
vehicle. This ensures complete monitoring of the vehicle's
surroundings, ideal for fleet management, public transportation, or
personal use.
2.AI-Powered ADAS (Advanced Driver Assistance System):
- Forward Collision Warning (FCW): Alerts the driver of potential frontal collisions.
- Lane Departure Warning (LDW): Notifies the driver if the vehicle unintentionally drifts out of
its lane.
- Pedestrian Detection: Identifies pedestrians near the vehicle to prevent accidents.
- Speed Limit Recognition: Detects and displays speed limit signs to help drivers comply with
traffic regulations.
3.Driver Monitoring System (DMS):
- Fatigue Detection: Monitors the driver's facial expressions and eye movements to
detect signs of drowsiness or fatigue.
- Distraction Alert: Alerts the driver if they are not paying attention to the road.
- Smoking/Calling Detection: Identifies unsafe behaviors like smoking or using a phone while
driving.
4.Blind Spot Detection (BSD):
- Monitors the vehicle's blind spots and alerts the driver to
potential hazards when changing lanes or reversing.
- Enhances safety by reducing the risk of collisions with vehicles or
objects in hard-to-see areas.
5.High-Resolution Recording:
- Supports high-definition video recording (e.g., 1080p or higher)
for clear and detailed footage.
- Night vision capabilities ensure reliable performance in low-light
conditions.
6.GPS Tracking and Real-Time Monitoring:
- Built-in GPS for real-time location tracking and route history.
- Live streaming via 4G/5G networks for remote monitoring and
management.
7.G-Sensor and Event Recording:
- Automatically saves footage in case of sudden impacts, collisions,
or harsh braking.
- Protects critical evidence for insurance claims or legal purposes.
8.User-Friendly Interface:
- Easy-to-use mobile app and software for seamless configuration,
playback, and data management.
- Compatible with smartphones, tablets, and PCs.
9.Wide Compatibility:
- Suitable for various vehicle types, including trucks, buses, taxis,
and private cars.
- Supports multiple storage options (e.g., SD cards, external hard
drives).
10.Durability and Reliability:
- Designed to withstand harsh environments, including extreme
temperatures, vibrations, and dust.
- Built-in surge protection and anti-interference technology for
stable performance.
Applications:
- Fleet Management: Monitor driver behavior, ensure compliance, and reduce accidents.
- Public Transportation: Enhance passenger safety and provide evidence in case of
incidents.
- Personal Vehicles: Improve driving safety and protect against fraudulent claims.
8-channel AI MDVR Main Specifications:
| Specification |
| Item | specification |
| OS | Linux |
| Language | Chinese/English/Russian/Others (can be customized) |
| Video Compression | H.265 H.264 |
| OSD | Character overlay function,Overlays information such as date time
and vehicle ID |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and
remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 |
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω,
supports 1 full screen and 2/4 split channels |
| Preview | support Single channel, 2/4 screen splicing preview, support
manual/event triggered full screen display function |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames
per channel. |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the
lowest level. |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; |
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; |
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; |
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; |
| 720P : 1Mbps~2Mbps, multi levels video quality optional; |
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; |
| Record Mode | Default automatic recording, supporting ignition recording, manual
recording, alarm recording, etc |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel |
| Compression | G.711A compression, 8KB/s speed |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage
function |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and
power outage, etc |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising
screen, OBD, etc |
| 1CH 485 interface, can connect PTZ,etc. |
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard
platform |
| Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can
be used as a mirror recording to ensure data security.IPC MDVR max
to 4TB. |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote
automatic upgrade |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively
advanced storage method in the industry |
| USB | Front USB interface, can use USB flash disk to upgrade and backup ;
support USB mouse to backup video |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including
pause, fast forward, and fast rewind |
| Support x 2,x4,x8,x16. fast forward or fast backward play |
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as
overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. |
| Voltage Input | DC:+12V ~ +36V |
| Voltage Output | +12V@2.5A,+5V@2A |
| Power Consumption | Normal Working ＜5W |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
| Net Weight | 2.5 Kg |
8CH AI Mobile DVR scenario application:

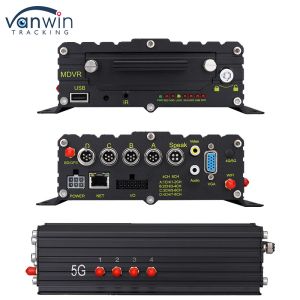

8CH AI Mobile DVR Photos
Installation Guide for 8CH AI Mobile DVR with ADAS, DMS, and BSD
Installing the 8CH AI Mobile DVR system requires careful planning
and execution to ensure optimal performance. Below is a
step-by-step guide to help you install the device correctly:
Tools and Materials Needed:
- Screwdrivers (Phillips and flathead)
- Drill and drill bits
- Cable ties or clips
- Electrical tape
- Power cables and connectors (included in the package)
- Mounting brackets (included)
- SD card or external storage (if not included)
Step-by-Step Installation:
1. Plan the Camera Positions
- Identify the locations for the 8 cameras to ensure full coverage
(front, rear, sides, and blind spots).
- Common positions:
- Front Camera: Near the rearview mirror or windshield.
- Rear Camera: Above the license plate or rear windshield.
- Side Cameras: On the side mirrors or doors.
- Blind Spot Cameras: Near the rear bumper or fenders.
2. Mount the Cameras
- Use the provided mounting brackets to secure the cameras in the
chosen locations.
- Ensure the cameras are firmly attached and angled correctly for
optimal coverage.
- For external cameras, drill holes if necessary and seal them to
prevent water ingress.
3. Install the Main DVR Unit
- Choose a secure and discreet location for the DVR unit, such as
under the dashboard or in the glove compartment.
- Ensure the unit is well-ventilated and protected from excessive
heat or moisture.
- Secure the DVR unit using screws or adhesive mounts.
4. Connect the Cameras to the DVR
- Route the camera cables through the vehicle’s interior (e.g., under
the carpet, along the headliner, or through cable channels).
- Use cable ties or clips to secure the cables and avoid loose
wiring.
- Connect each camera to the corresponding port on the DVR unit.
5. Power the DVR System
- Connect the DVR unit to the vehicle’s power supply using the
provided power cable.
- Typically, the red wire connects to the ignition (ACC) for
automatic power-on, and the yellow wire connects to the battery for
continuous power.
- Use a fuse tap to ensure safe and stable power supply.
6. Install the GPS Antenna
- Mount the GPS antenna on the dashboard or roof for clear satellite
signal reception.
- Route the antenna cable to the DVR unit and connect it to the
designated port.
7. Set Up the ADAS, DMS, and BSD Features
- ADAS Calibration: Follow the manufacturer’s instructions to
calibrate the ADAS system. This may involve driving the vehicle at
a specific speed or aligning the front camera with the road.
- DMS Calibration: Adjust the driver-facing camera to ensure it
captures the driver’s face clearly.
- BSD Calibration: Position the blind spot cameras to cover the
vehicle’s blind spots effectively.
8. Configure the System
- Insert an SD card or connect external storage to the DVR unit.
- Power on the system and access the settings via the mobile app or
software.
- Configure recording settings, motion detection, and alerts for
ADAS, DMS, and BSD features.
9. Test the System
- Verify that all cameras are functioning and recording properly.
- Test the ADAS, DMS, and BSD features to ensure they provide
accurate alerts and warnings.
- Check the GPS tracking and live streaming functionality (if
applicable).
Tips for Optimal Performance:
- Ensure all cables are properly insulated and protected from wear
and tear.
- Regularly clean the camera lenses to maintain clear video quality.
- Update the DVR firmware periodically to access the latest features
and improvements.
The 8CH AI Mobile DVR with ADAS, DMS, and BSD is an all-in-one
solution for modern vehicle safety and surveillance, combining
advanced AI technology with robust recording capabilities to
deliver peace of mind on the road.
