10.1 Inch TFT Car HD Monitor Description
10.1 Inch TFT Car HD Monitor Display Screen TFT LCD Color HD Screen
For Van Truck
The 10.1 Inch TFT Car HD Monitor is a high-quality, versatile
display designed for in-vehicle entertainment, navigation, and
surveillance applications. With its sleek design, vibrant display,
and user-friendly features, this monitor is an ideal addition to
cars, trucks, buses, and other vehicles. Whether used for watching
videos, viewing GPS navigation, or monitoring rearview cameras,
this monitor delivers exceptional performance and clarity.
10.1 Inch TFT Car HD Monitor Key Features:
10.1 Inch High-Definition Display:
- Features a 10.1-inch TFT LCD screen with a resolution of 1280x800
(HD), providing sharp, clear, and vibrant visuals.
- Wide viewing angles ensure optimal visibility from different
positions in the vehicle.
Versatile Connectivity:
- Supports multiple input sources, including HDMI, AV, VGA, and USB,
making it compatible with various devices such as DVD players,
gaming consoles, cameras, and GPS systems.
- Equipped with an AV input for connecting rearview cameras,
enhancing safety while reversing.
Touchscreen Functionality (Optional):
- Some models feature touchscreen capabilities for intuitive control
and easy navigation.
Compact and Slim Design:
- Lightweight and slim profile for easy installation in tight spaces,
such as car headrests, dashboards, or ceilings.
Adjustable Mounting Options:
- Comes with flexible mounting brackets for secure installation in
various positions within the vehicle.
- Can be mounted on headrests for rear-seat entertainment or on the
dashboard for driver convenience.
High Compatibility:
- Works seamlessly with a wide range of devices, including car DVRs,
reverse cameras, media players, and gaming consoles.
- Compatible with both 12V and 24V vehicle power systems.
Built-in Speakers:
- Integrated speakers deliver clear audio for an immersive multimedia
experience.
User-Friendly Interface:
- Simple controls and an intuitive interface for easy operation.
- On-screen display (OSD) menu for adjusting settings such as
brightness, contrast, and volume.
Durable and Reliable:
- Designed to withstand the rigors of vehicle environments, including
vibrations and temperature fluctuations.
- Energy-efficient design with low power consumption.
Product Specification:10.1 Inch TFT Car HD Monitor
Model | VW-1016AHD |
Screen | 10.1 inch 16:9 |
Resolution | 1024*R.G.B*600 |
Back Light Luminance | LED, 500cd/m2 |
View angle | L/R: 180°
UP/Down: 180° |
Video Input | 4-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable
Supporting AHD 720P/960P/1080P
Video Compatibility: CVBS /AHD |
Audio Input | Built-in speaker,1 way audio input(V2) |
Reverse Trigger | 4 Ways Trigger Priority:V2>V1>V3>V4 |
System | PAL & NTSC auto-switching |
SD card | 1 x SD High speed card (Max. 256G) |
Video compression | H.264 |
OSD Menu | Video Recording is optional (Supporting 4CH video recording
simultaneously and storage into four independent files
simultaneously
Supporting quick photography, playback, pause, forward, backward
and other operations.
The video file can be locked for protection, and the locked file
will not be overwritten or deleted.
The memory card can be automatically overwritten or deleted
manually |
Power supply: | DC 12V-36V input,12V output |
Protection Setting | High-low voltage protection & short circuit protection |
Working temperature | -20℃ to 70℃ |
Storage temperature | -30℃ to 80℃ |
Housing: | Plastic & With Black Rubber Painted |
Accessories | Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
Cable Connector | RCA / 4pin connector (Optional) |
Dimension | 180*121*26(75)mm |

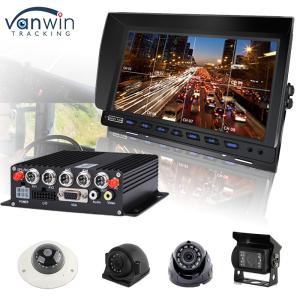

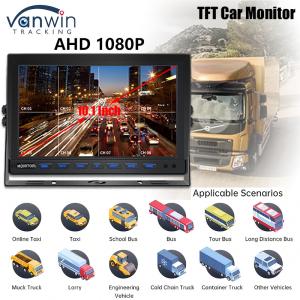

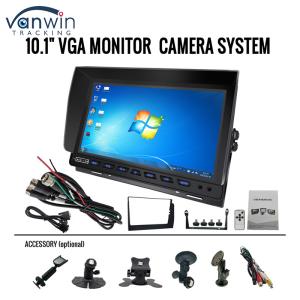

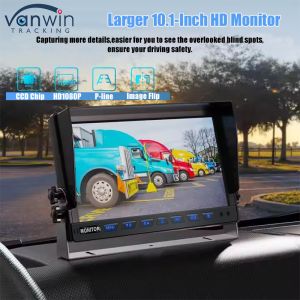

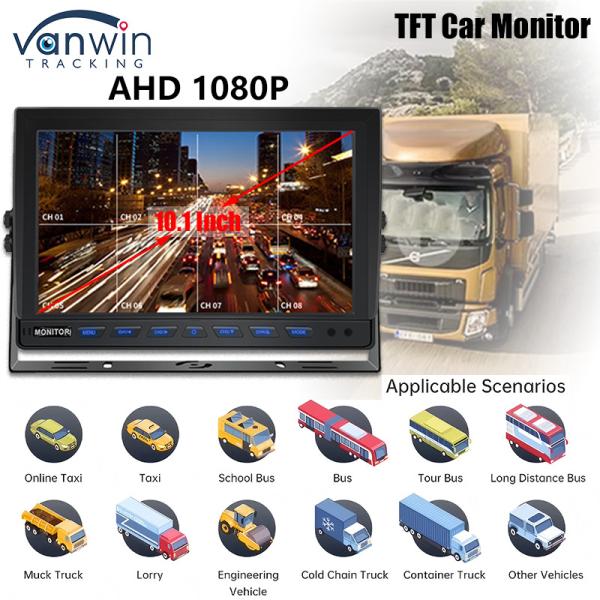

Product Photos:10.1Inch TFT Car HD Monitor
FAQ:10.1 Inch TFT Car HD Monitor
Q1.What is the screen resolution of the monitor?
The monitor features a 10.1-inch TFT LCD screen with a resolution
of 1280x800 (HD),providing sharp and vibrant visuals.
Q2.What input ports are available on the monitor?
The monitor supports multiple input sources, including
HDMI,AV,VGA,and USB.This makes it compatible with devices like DVD
players,gaming consoles,cameras,and GPS systems.
Q3.Can I connect a rearview camera to this monitor?
Yes,the monitor is equipped with an AV input that allows you to
connect a rearview camera, enhancing safety while reversing or
parking.
Q4.Is the monitor compatible with 12V and 24V power systems?
Yes,the monitor is compatible with both 12V and 24V vehicle power
systems, making it suitable for a wide range of vehicles.
Q5.Does the monitor have built-in speakers?
Yes,the monitor comes with integrated speakers that deliver clear
audio for an immersive multimedia experience.
Q6.Can I mount the monitor in different positions within the
vehicle?
Yes,the monitor comes with flexible mounting brackets that allow
you to install it on headrests, dashboards, or ceilings, depending
on your needs.
Q7.Is the monitor touchscreen?
Some models of the 10.1 Inch TFT Car HD Monitor feature touchscreen
functionality for intuitive control and easy navigation. Please
check the product specifications to confirm if your model supports
this feature.
Q8.What is the operating temperature range of the monitor?
The monitor is designed to operate reliably in temperatures ranging
from -20°C to 70°C (-4°F to 158°F),making it suitable for various
vehicle environments.
Q9.How do I adjust the display settings?
The monitor features an On-Screen Display (OSD) menu that allows
you to adjust settings such as brightness,contrast, and volume. Use
the control buttons on the monitor to access and navigate the OSD
menu.
Q10.Can I use this monitor for GPS navigation?
Yes,the monitor is compatible with GPS systems and can be used as a
display for real-time navigation and route guidance.
About Us
We have always adhered to the concept of sincerity,kindness,and
altruism,customer-oriented,and do our best to help customers
benefit mankind!
We believe in making the world a safer place for drivers and
pedestrians We do this professionally by owning our entire
manufacturing process, by having a deep understanding of the
vehicle safety field with over 15 years of experience, and by using
only the highest quality materials and up-to-date with the most
advanced AI technology.
We is one high-tech industry specializing in
R&D,production,sales of vehicle video monitoring
system,3G/4G/5G/GPS monitoring kits,intellectual public transit
dispatcher`s monitoring system,video people counter.Our products
refers to SD HDD mobile dvr,3G/4G/5G remote control monitoring dvr
with mature ADAS DMS BSD,vehicle multi-media Ads machine,car
camera,software etc.They are widely used in public transport,
passengers traffic,logistics,law enforcement cars,escort and so
on.With very strong research technology,senior industry
background,very stable good quality,on-time production&delivery
capacity,high efficiency service,we soon have achieved in one of
the leaders in the market.
If you have additional questions or need further assistance, please
refer to the product manual or contact the manufacturer’s customer
support team. The 10.1 Inch TFT Car HD Monitor is a versatile and
reliable solution for all your in-vehicle display needs!
