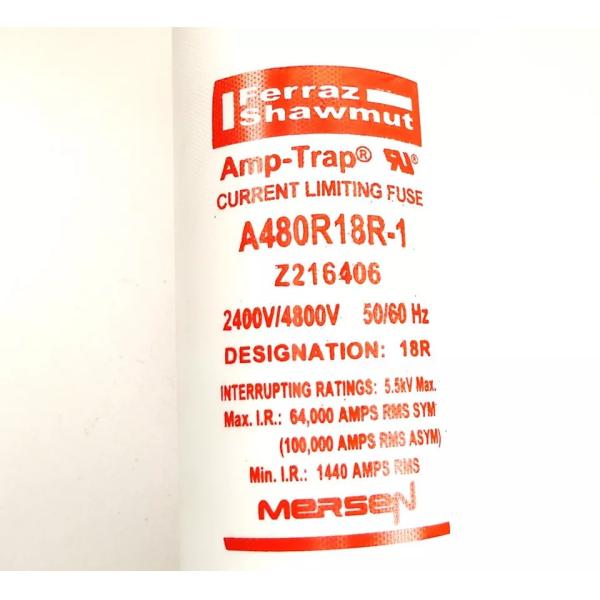

    A480R18R-1 4800V 9F60 R-Rated MEDIUM VOLTAGE Fuse Motor Protection fuses

    Ask Lasest Price
    Price : Negotiated
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

    A480R18R-1 4800V 9F60 R-Rated MEDIUM VOLTAGE Fuse Motor Protection fuses

    A480R18R-1 4800V 9F60 R-Rated MEDIUM VOLTAGE Fuse Motor Protection fuses


    Details:

    R-Rated, Medium Voltage Type; 15.88 Inch; UL Approval; 4.8 Kilovolt AC Voltage Rating; 3 Inch Diameter; 64 Kiloamp at 5.5 Kilovolt AC, 1440 Amp Interrupting Rating; 390 Amp Current Rating; 18R Designated Size; Ferrule Terminal Type; 2 Barrel(S); AMP-TRAP[R] Brand; RoHS Compliant; Body/Insulating Material Epoxy; Connection/Terminal Material Silver Plated Copper; Indication System Type Visual Indicator; Mounting Clip; Application Short Circuit Protection of Medium Voltage Motor and Motor Controller; 9F60 Model


    Applications:

    Short circuit protection of medium voltage motors and motor controllers.


    Physical installation drawing


    A480R Series:
    • Volts: 4.8kVAC
    • Amps: 2 to 36R
    • IR: 50kA Sym


    Description:

    R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers.

    R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips.


    Features/Benefits:
    1500VAC/DC rated for wide range of applications
    Heavy duty links
    Rugged fiberglass body


    Highlights:

    R-Rated

    UL recognized


    4.8KV R480R FERRULE MOUNTED FUSES



    4.8KV R480R FERRULE MOUNTED FUSES Figure:



    More Simlar 4.8KV R480R FERRULE MOUNTED FUSES

    A480R2R-1A480R2R-1HE
    A480R3R-1A480R3R-1HE
    A480R4R-1A480R4R-1HE
    A480R5R-1A480R5R-1HE
    A480R6R-1A480R6R-1HE
    A480R9R-1A480R9R-1HE
    A480R12R-1A480R12R-1HE
    A480R18R-1A480R18R-1HE
    A480R24R-1A480R24R-1HE
    A480R36R-1A480R36R-1HE
