    340/380-2700MHz 4.3-10 Female Power Splitter With 50 Ohm Impedance

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-PS-03427-OPx-S
    Certification : ISO 9000 ROHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    340/380-2700MHz 4.3-10 Female Power Splitter With 50 Ohm Impedance

    340/380-2700MHz P Female Power Splitter


    • High power handling splitters
    • Good VSWR at all ports
    • Wide band frequency

    VN-PS-03427-OPx-S-xxx.pdf

    Part NumberVN-PS-03427-OPx-S-xxx
    Operating Frequency ( MHz )340/380-2700
    Impedance ( Ohm )50
    Power Partition Coefficient@OPx2-way3-way4-way
    VSWR≤1.25≤1.25≤1.30
    Split Loss (dB)≤3.5≤5.6≤7.1
    IM3 (dBc @ 2×43dBm)@xxx-140 / -150 / -155/ -160/-165
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    Interface4.3-10 Female
    Handling Power (Watt, max)500
    Peak Power (Watt, max)1500

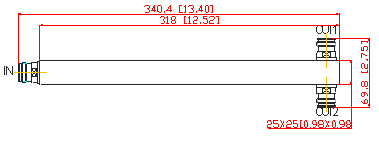

    Dimension (mm)(L×W×H, excl connector)318×25X25365 × 25 × 25399×25×25
    Net Weight (g)550 ± 20645±20735±20
    Packing Dimensions (mm,L×W×H)420×80×40420×80×40460×80×60
    Packing Carton Size (mm,L×W×H)434×435×195434×435×195480×445×275
    ROHS ComplianceYes
