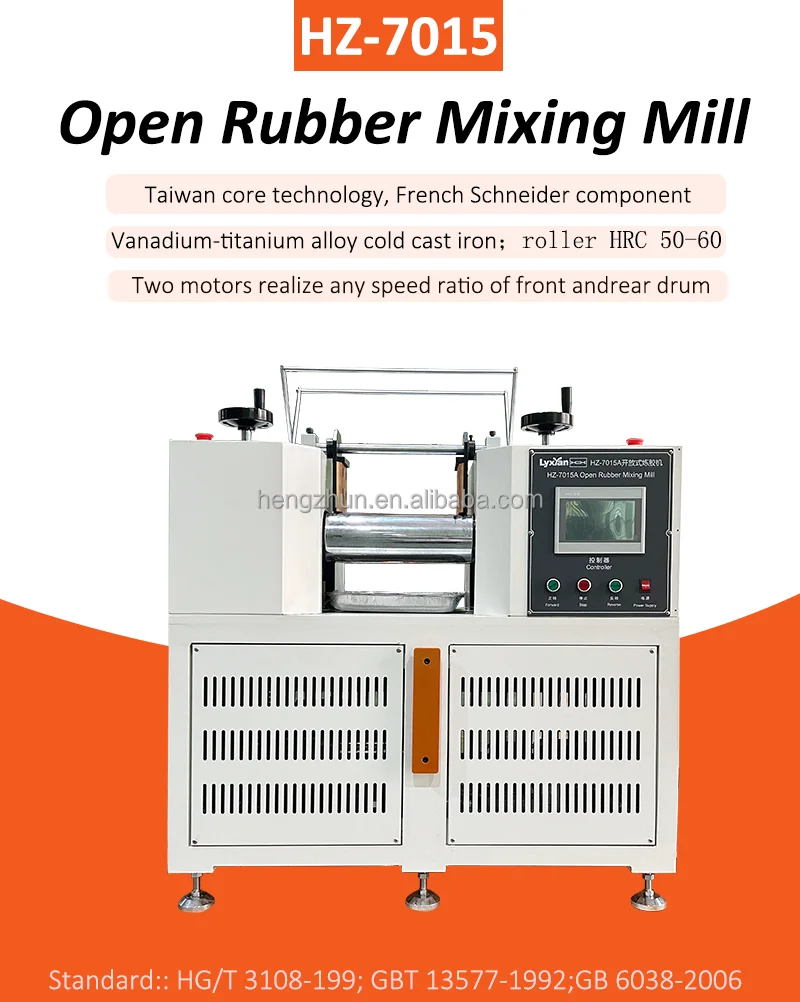

    Open Rubber Mixer Equipment Two Roll Open Mill Rubber Mixing Machine With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg

    Ask Lasest Price
    Brand Name : Lixian
    Model Number : HZ-7015
    Certification : CE/ISO
    Price : USD 2000~6000/ per set
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 50 sets/per month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    Open Rubber Mixer Equipment Two Roll Open Mill Rubber Mixing Machine With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg

    Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing Capacity 0.3 To 2kg

    Rubber Two Roll Open Mill Equipment Summary

    The Rubber Two Roll Mill Supplier Equipment suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use..

    Rubber Two Roll Open Mill Reference Standard

    HG/T 3108-199

    Rubber Two Roll Open Mill Technical Parameters

    model number
    HZ-7015
    Application
    Rubber Mixing Mill Machine
    Roller Diameter
    120mm/4inch
    Roller face width
    320 mm
    Mixing capacity
    0.3~2kg
    Safety device number
    8 PCS
    Power voltage
    3phase,AC380V
    Roller spacing
    0.1~10mm adjustable
    Motor power
    4.5KW
    Roller hardness
    50~60HRC
    Product name
    Two Roll Mill
    Features
    1. The core technology from Taiwan, The main parts adopt the French schneider.
    2. Water-cooled, surface temperature by water cycle at room temperature - water temperature, at the same time temperature uniformity.
    3. Roll adopts the vanadium titanium alloy chilled cast iron,roll hardness(HRC)50-60,surface is hard wear-resisting, durable. Roller lumen finish machining to ensure that the roller body cooling quickly and evenly.
    4. The machine adopts manual adjustment mode, Thickness control precision,easy operation, High safety factor.
    5. The machine is equipped with an emergency brake, When emergency accidents,four corners have emergency switch, a number of brake system, convenient quick stop machine.
    6. Transmission device adopts hardened reducer,compact structure,transmission efficiency, little noise.
    7. Automatic oiling device to ensure that long-term oil for driving part,Make up the pump forget supply damage to part of serious consequences.
    8. Two motor driven,arbitrary roller speed ratio before and after implementation,easy to operation.
    9. Integral plate,easy installation.Driving mode is uniaxial output to ensure the big torque,imported bearings to reduce friction to save electricity, reduce noise, and Rubber thickness uniform parallel controllable.
    10. Transmission device adopts double double frequency converter control,Low noise, long service life.
    Two Roll Open Mill Product Description

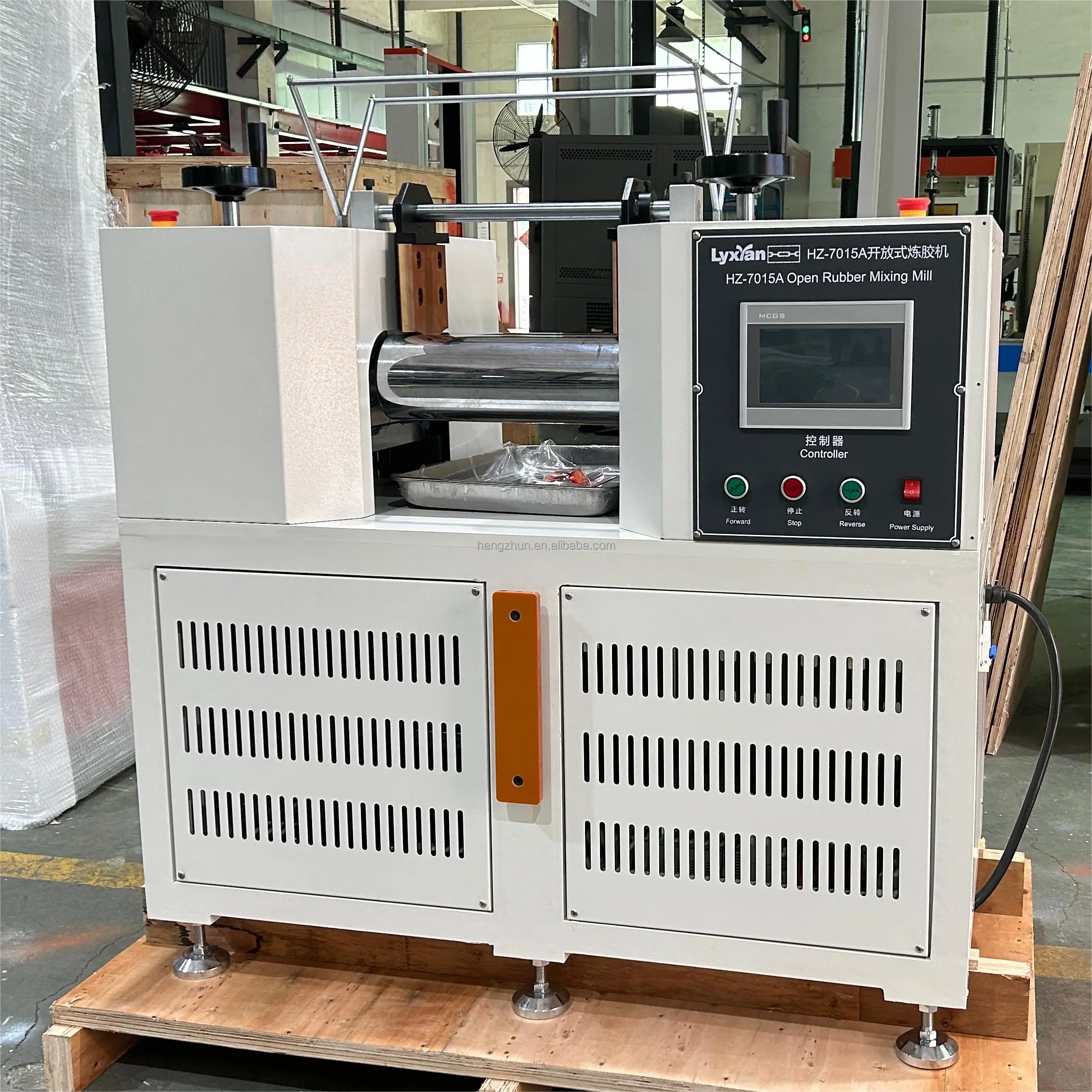

    Two Roll Open Mill Details Images
