| Brand Name : | Ruiyuan |
| Model Number : | USTCF litz wire |
| Certification : | UL/ISO9001/ISO14001/RoHS/Reach |
| Price : | Negotiation |
| Payment Terms : | TT/Paypal |
| Supply Ability : | 100kg/week |
| Delivery Time : | 7 days |

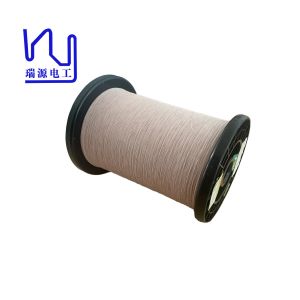

2USTC-F 30x0.03 High Frequency Silk Covered Litz Wire For Transformer
This stranded wire is carefully wrapped with a nylon yarn on the outer layer to provide enhanced protection and insulation. The Litz wire consists of 30 strands of ultra-fine 0.03mm enameled copper wire, ensuring optimal conductivity and minimal skin effect at high frequencies. For those seeking a finer gauge, we offer the option of using 0.025mm wire.
Item | Technical requests | Sample 1 | Sample 2 | Sample 3 |
Single wire diameter mm | 0.110-0.125 | 0.113 | 0.111 | 0.112 |
Conductor Diameter mm | 0.100±0.003 | 0.10 | 0.10 | 0.10 |
O.D. mm | Max.1.48 | 1.27 | 1.31 | 1.34 |
Pitch | 17±5 | √ | √ | √ |
Resistance Ω/Km(20℃) | Max.28.35 | √ | √ | √ |
Breakdown Voltage V | Min.1100 | 2700 | 2700 | 2600 |
Pinhole | 84 faults/5m | 3 | 4 | 5 |
Solerability | 390 ±5C° 6s | ok | ok | ok |
|
