Mangoose Toyota Diagnostics and Reprogramming Interface With
Completely New Chip
Mangoose Toyota Diagnostic Interface Description
DrewTech designed this product to be affordable for CarPCs, the
aftermarket, and automotive enthusiasts. The Mangoose includes a
J2534 driver and delivers full-speed (12mps) USB 2.0 performance.
Mangoose Toyota Diagnostic Interface Specification
1. Mangoose Features
1)Lost cost, high performance pass-thru diagnostic tool for use
with PC
2)Simple packaging with electronics contained inside the cable
3)J2534 and J2534-1 compliant device driver
4)Commercial Range (0 to +70° C)
5)Dimensions: 3" x 1.75"
6)Cable length: 6 feet
7)Operating Voltage: Bus-powered by USB
8)Mongoose VPW supports GM TIS, SPS, TIS2WEB, and DPS flash
reprogramming software
2. Bus Protocols
| Mangoose VPW | - CAN/ISO 15765/GMLAN
- GM Class2 (J1850VPW)
|
|---|
| Mangoose PWM | |
|---|
| Mangoose ISO | - CAN/ISO 15765
- KWP2000 (ISO9141 / ISO14230)
|
|---|
3. Software Options
The DrewTech Mongoose is a USB pass-thru device that utilizes the
SAE J2534-1 API. What this means is that the Mangoose uses a
standard communications interface to the vehicle, allowing it to
work with 3rd party diagnostic applications. Different diagnostics
and data logging applications supported are currently supported by
the Mongoose, with more being added all of the time.
4. PCMScan Diagnostics and Data Logging Software
This full version of PCMScan allows viewing, charting, data
logging, and playback of diagnostic data in real time. Realistic
looking gauges can be moved, resized, and laid out to resemble your
own dashboard. Display English or Metric units. Read stored
Diagnostic Trouble Codes (DTCs), clear the check engine light, and
test emissions related systems.
5.PCMScan running on Mongoose ISO and Mongoose VPW
PCMScan running on Mongoose ISO(M-ISOCAN) or Mongoose VPW(M-VPWCAN)
supports all ISO141 import vehicles and all CAN vehicles including
all GM vehicles and many Ford, BMW, Honda, Toyota, Chrysler,
Mitsubishi, Nissan, Volvo, Volkswagen, and many other automaker
brands. By 2008 all vehicles on the road will be CAN based and
supported by the Mongoose ISO/CAN adapter.
6.API
Drew Technologies also provides an application programmer interface
(DLL) for OEMs, integrators, or end-users to develop their own
PassThru (SAE J2534) applications. Create your own applications in
LabVIEW™, C or Visual Basic.
Please attention this cable can not do ECM programming.

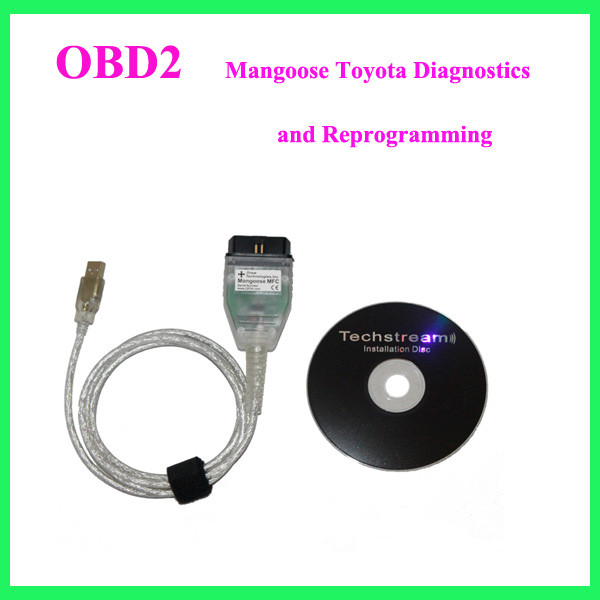

Package list:

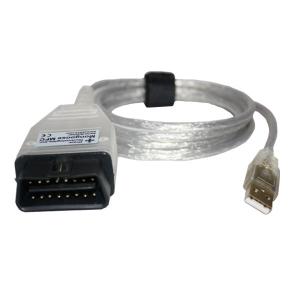

1.Mongoose vehicle interface
2.Installation CD with device driver (J2534 compatible)
