    Long Travel UTM Electronic Tensile Strength Testing Machine for Metal Material

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-B617-S
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Long Travel UTM Electronic Tensile Strength Testing Machine for Metal Material

    Long Travel UTM Electronic Tensile Strength Testing Machine for Metal Material


    Tensile Testing Machine Standards Sharing.pdf


    APPLICATIONS:

    1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
    2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
    3. Deformation under defined load: Test deformation under defined load of tested sample
    4. Load under defined deformation: Test load under defined deformation of tested sample
    5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

    ADHESIVE:

    • ASTM D903: Peel & Stripping Test
    • ASTM D1002: Shear Strength (Adhesive for metal to metal)
    • ISO 4587: Tensile lap-shear strength (Rigid-to-rigid bonded assemblies)

    MAIN TECHNICAL PARAMETERS:



    Items

    Specification

    Sensor

    Celtron load cell

    Capacity

    5kg, 10kg, 20kg, 25kg, 50kg, 100kg, 200kg,300kg,500kg

    Unit Switchover

    G, KG, N, LB

    Display Device

    LCD or PC

    Resolution

    1/250,000

    Accuracy

    ±0.25%

    Max. Stroke

    1400mm (excluding fixture)

    Test Speed

    0.1-500mm/min (adjustable )

    Motor

    Taiwan 400w servo motor

    Screw

    High Precise Ball Screw

    Elongation Accuracy

    0.001mm

    Power

    1phase,AC220V, 50HZ

    Weight

    Approx.85kg

    Accessories

    One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

    DETAIL SHOWS:




    FEATURES:

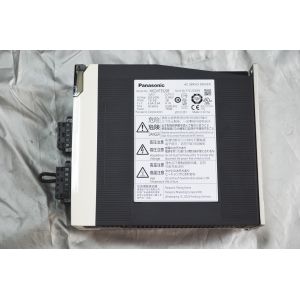

    1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
    2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
    3. Data transmission: RS232.
    4. Displacement resolution: 0.001mm.
    5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
    6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
    7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
    8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
