    Leather Tensile Testing Machines , Computer Servo Electrical Test Equipment

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-B604-S
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Leather Tensile Testing Machines , Computer Servo Electrical Test Equipment

    Leather Tensile Testing Machines , Computer Servo Electrical Test Equipment

    Product Description:

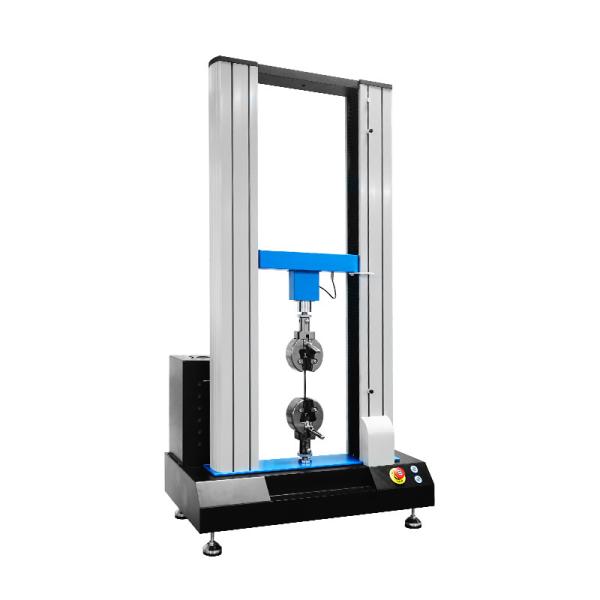

    This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

    Main Technical Parameter:

    Items

    Specification

    Sensor

    Celtron load cell

    Capacity

    500, 1000, 2000KG

    Unit Switchover

    G, KG, N, LB

    Display Device

    PC

    Resolution

    1/250,000

    Accuracy

    ±0.5%

    Max. Stroke

    1200mm (excluding fixture)

    Test Speed

    0.1-500mm/min (adjustable )

    Motor

    Panasonic Servo Motor

    Screw

    High Precise Ball Screw

    Elongation Accuracy

    0.001mm

    Min span :

    10mm

    Weight

    Approx.150kg

    Tolerance :

    ±0.5% (according to requirement of customer

    Product Features:

    1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

    2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

    3. Data transmission: RS232

    4. Displacement resolution: 0.001mm
