Original Autel AutoLink AL539 OBDII / CAN SCAN TOOL Internet Update
Multilingual Menu
Languages: English, German, French, Polish, Spanish
AL539 Features:
Works on ALL 1996 and newer vehicles(OBDII & CAN)-domestic and
import
Features the unique patented One-Click I/M Readiness Key for quick
State Emissions readiness check and drive cycle verification
Easy-to-read AVOmeter allows you to test voltage, continuity and
current at the fingertip
Capable of diagnosing 12V charging systems, starting systems and
condition of discharged battery
Bright color coded LEDs and built-in speaker provide both visual
and audible tone for readiness verification
Easily determines the cause of the Check Engine Light (MIL)
Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1,
P3, and U1) codes and pending codes
Turns off Check Engine Light (MIL), clears codes and resets
monitors
Displays monitor and I/M readiness status (emissions)
Reads live PCM datastream, live O2 sensor test data, freeze frame
data
Graphs data (1996 and newer)
Troubleshooter codes tips guide technicians to the root cause of
trouble code faster, saving diagnosis and repair time
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu and DTC definitions-English, Spanish and French,
etc.
Retrieves vehicle information (VIN, CIN and CVN)
Internet updateable and upgradeable
Prints data via PC
Autel AutoLink AL539 Specification:
Display TFT color display (320 x 240 dpi)
Operating Temperature 0 to 60°C (32 to 140 F°)
Storage Temperature -20 to 70°C (-4 to 158 F°)
LengthWidthHeight 175 mm (6.91”)96.6 mm (3.80”)37 mm (1.46”)
Weight 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire)

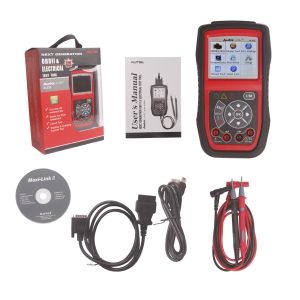

Autel AutoLink AL539 Package including:
1pc x Auto Link® AL539
1pc x User’s manual
1pc x CD
1pc x USB cable
1pc x OBDII Cable
1pc x Protective Nylon est
1pc x Probes
1pc x 3.7V Li-ion battery
