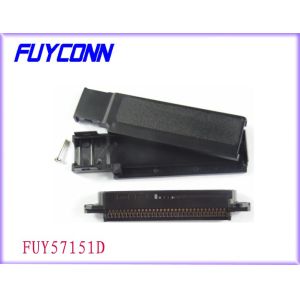

    64 Pin IDC Plug Side Entry Centronics Female Connector With Plastic Cover

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUY57146-1D
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    64 Pin IDC Plug Side Entry Centronics Female Connector With Plastic Cover


    64 Pin IDC Plug Side Entry Centronics Connector With Plastic Cover


    FUY57146D Side Entry 2.16mm pitch champ IDC TE 552285 Centronc Connector 64P Plug Female B Slot Champ lok


    This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.

    Detail Description

    Product Category: Centronic connector
    Product Line: Champ Connector
    Type: Centronic IDC Connector
    Connector Style:Plug
    Number of Terminal: 64 pin
    Gender: Male
    Insulator Color: Black
    Insulator Material: PPO
    Contact pin Material: Phosphor Bronze
    Centerline = 2.16mm [0.085in]
    Mounting Option: 90°Cable Outlet
    Cover: Plastic Cover or No Cover both are available

    Common Features

    Designed for Cable-to-cable and cable-to-PC Board applications

    Avilable in Plug & Socket Style

    Terminal Option with various types

    Connector and hood sold as complete assembly

    Avilable in low profile hood style

    Metal shell provides grounding and shielding capability

    Mates with industry compatible connector


    Product Features

    Product Type:

    Centronics IDC Connector

    Product Line:

    Champ Connector

    Gender:

    Female

    Connector Style:

    Socket

    Certerline :

    2.16mm(0.85in)

    Number of Position:

    64 pin

    Contact Plating:

    Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U"

    Insulator Color:

    Black

    Shielded:

    Yes

    Orientation:

    90 Degree Cable Exit

    Mating connector lock:

    Screwlocks


    Materials

    Contact Material:

    Phosphor Bronze

    Insulator:

    PBT

    Housing Material:

    Plastic


    Electrical Character

    Current Rating:

    5Amp

    Withstanding Voltage:

    AC 1000v r.m.s

    Insulation Resistance:

    1000 Megohms Minimum at DC 500V

    Contact Resistance:

    25M∩ Max Mated

    Operation Temperature:

    -55°C to +105°C


    Application

    1, VDSL Teleccom Equipment

    2, Computer Peripherals

    3, Communication Equipment

    4, RJ21 Cable

    5, Cable to Panel

    6, Cable to cable

    7,Computer terminal

    8,Telemetering

    9,Test Equipment

    10, Printer


    Advantage:

    1,ROHS compliant, UL-approved
    2,High quality, Competitive price
    3,Quick delivery time
    4,Free sample available in 2 days
