    NVIDIA AI Embedded System Kit Jetson AGX Orin Developer Kit 32G 900-13701-0040-000

    Ask Lasest Price
    Brand Name : PLINK
    Model Number : Y-C8-DEV-Orin32
    Price : To be discussed
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1+set+4weeks
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    NVIDIA AI Embedded System Kit Jetson AGX Orin Developer Kit 32G 900-13701-0040-000

    NVIDIA AI Kit Industrial Embedded System Jetson AGX Orin Developer Kit 32G 900-13701-0040-000


    NVIDIA Jetson AGX Orin Developer Kit Y-C8 AGX Orin module 32G 900-13701-0040-000

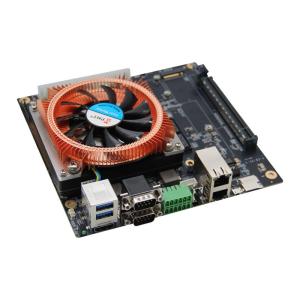

    Y-C8-DEV is a development kit adapted to NVIDIA Jetson AGX Orin 32G module 900-13701-0040-000, 200 TOPS computing power can be widely used in agriculture, industry, manufacturing, autonomous machines, smart cities, aerospace, unmanned and other scenarios, using NVIDIA Ampere GPU architecture, 32G memory and 64G eMMC 5.1 storage and excellent cooling system, the entire development kit will give you a very convenient and intelligent experience in the scene application,Developed by PLink-AI Technology, the developer kit is equipped with the NVIDIA Jetson AGX Orin module 900-13701-0040-000 and Y-C8 carrier board and cooling FAN


    NVIDIA Jetson AGX Orin Module 900-13701-0040-000 (32G) Technical Specifications

    AI Perf

    200 TOPS

    GPU

    1,792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores

    GPU Max Frequency930 MHz

    CPU

    8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
    2MB L2 + 4MB L3

    CPU Max Frequency2.2 GHz

    Memory

    32GB 256-bit LPDDR5
    204.8GB/s

    Storage

    64GB eMMC 5.1

    USB

    3x USB 3.2 Gen2 (10 Gbps)
    4x USB 2.0

    Camera

    Up to 6 cameras (16 via virtual channels)
    16 lanes MIPI CSI-2
    D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)

    Display

    1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1


    USB Micro-B

    1 x Type B (OTG)

    USB Type-A

    1 x USB 3.1

    GPIO(3.3V)

    1

    SPI(3.3V)

    1

    I2C(3.3V)

    2

    RS 232

    2

    Debug(UART)

    1

    CAN (with on-board transceiver)

    2

    Networking

    1 x 10/100/1000 Ethernet/RJ45

    Power Supply

    DC +12V

    Temperature

    -20~+65°C

    Size

    188mm × 170mm × 43mm

    Weight713g
