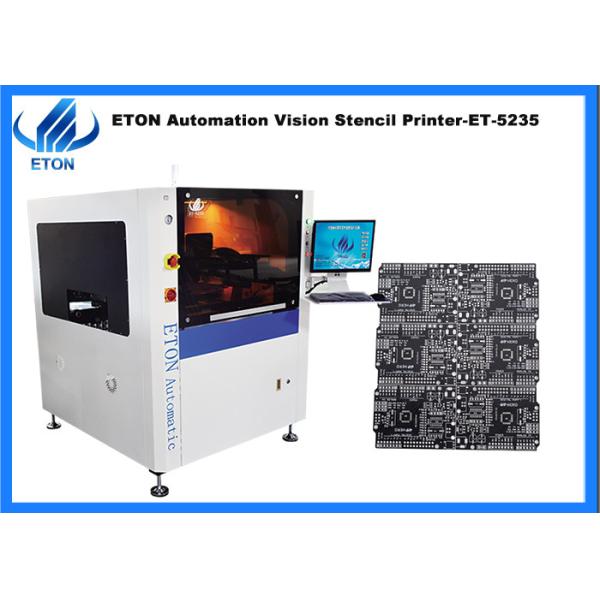

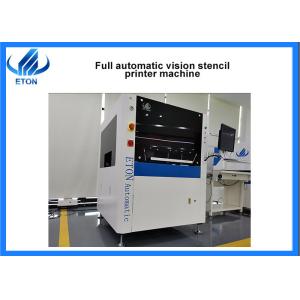

    SMT Vision Stencil Printer 10mm PCB Transfer Overhead Height

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-5235
    Certification : CE,CCC,SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    SMT Vision Stencil Printer 10mm PCB Transfer Overhead Height

    SMT vision stencil printer 10mm PCB transfer overhead height


    Machine main features

    1. PCB transport and clamping system

    • The PCB loading direction can be selected and combined freely;
    • Unique crafted internal gear conveyor belt to prevent jamming;
    • Programmable transport speed control makes PCB stop more precise;
    • Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
    • stencil positioning system
    • Arch bridge-shaped suspension hanging direct-contact scraper;
    • The size of steel mesh is universal, with goof and wide applicability;
    • Segmented fixed steel mesh frame.
    • Scraper system
    • Programmable suspension self-adjusting stepper motor drives print head;
    • Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
    • Slide rail type scraper system, improve operation stability and prolong time;
    • Embedded scale, never fall off.
    • Operation system
    • Easy to learn and easy to use friendly operation interface;
    • With good human-machine dialogue function;
    • Make program files with teaching and navigation functions, with prompts for each step;
    • One key switch between Chinese and English, with operation log, fault record analysis and diagnosis.
    • Image and optical system
    • X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side;
    • The polarizer is added inside, and the mark different shapes is automatically and accurately grasped, and the upper, lower and coaxial three way uniform light sources.
    ModelET-5235
    PCB size

    Max:520*350 mm

    Min:50*50 mm

    Transport height900±20mm
    Transport speedMax 1200mm/s programmable
    Printing accuracy±0.025mm
    Cycle time≤9s(Excluding printing&cleaning)
    Control methodPC control
    PCB transfer overhead height10mm

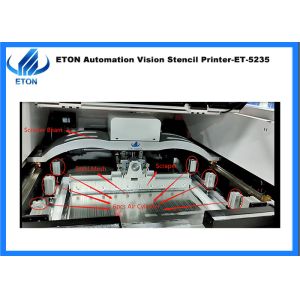

    Machine main part

    Certificates

    As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

    etc.

    Packages

    Our package step is follow the blowing:

    STEP 1: Film packaging to prevent the dust and water;

    STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

    STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

    STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

    Delivery: by sea, air, land transport.

    Related machine

    We can provide a whole SMT production line,led light production line:

    1.Pick and place machine

    2. Loader machine

    3. Conveyor machine

    4. Stencil printer machine

    5. Reflow oven machine

    6. Unloader machine

    7. Solder paste mixer

    8. Roll to roll led strip light assembly machine

    Contact me:

    Whatsapp/Wechat: +8613632769526

    Email: Noah@eton-mounter.com
