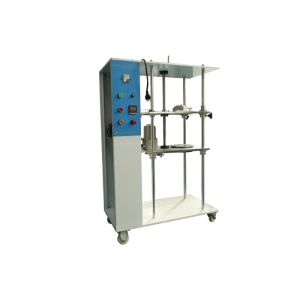

IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment

    Buy cheap IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment from wholesalers

    Buy cheap IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment from wholesalers
    • Buy cheap IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment from wholesalers
    • Buy cheap IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment from wholesalers
    • Buy cheap IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment from wholesalers
    • Buy cheap IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment from wholesalers

    IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment

    Ask Lasest Price
    Brand Name : HJ
    Model Number : HC9903/HC9903A
    Certification : calibration certificate (cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 10 set /month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment

    Plug Socket Test Equipment Apparatus For Checking Damage To Conductors Button Operation


    Standard:

    IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 12.2.5, figure 11

    IEC 60669-1 ‘Switches for household and similar fixed electrical installations – Part 1: General requirements’ clause 12.2.5, firgure 9


    Application:

    This device is use to check whether the terminals with screw and screwless terminals can bears the mechanism force under normal operation. Mainly use to judge whether the design and structure of screw clamping terminals meet the requirement of clamp the conductors without excessive damage. Plug Socket Test Equipment


    Test sample:

    Terminals, connectors


    Feature:

    Adopt the structure of guide rail. Can preset test times, while testing, tester will automatic stop when preset test times completed, and output sound alarm signal.



    Parameter:

    ModelHC9903HC9903A
    Test rate10±2 RPM10±2 RPM
    Diameter of gyration75mm75mm
    Test times0-99990-9999
    Weights0.3, 0.4, 0.7, 0.9, 1.4, 2kg0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg
    Test height260, 280, 300, 320mm250~500mm
    Diameter of ferrule hole6.5, 9.5, 13, 14.5mm6.5~28.6mm, 12 pc
    StandardsIEC60884-1, IEC60669-1, Plug Socket Test EquipmentIEC60998-2-2, IEC60947-1
