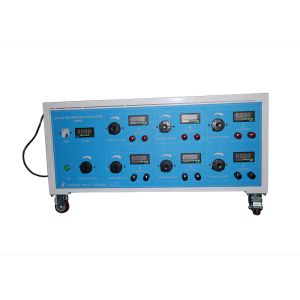

AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box

    Buy cheap AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box from wholesalers

    Buy cheap AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box from wholesalers
    • Buy cheap AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box from wholesalers
    • Buy cheap AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box from wholesalers
    • Buy cheap AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box from wholesalers

    AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box

    Ask Lasest Price
    Brand Name : HJ
    Model Number : HC9920
    Certification : calibration certificate (cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 10 set /month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box

    Plug Socket Test Equipment Load box for Power Cord Flexing Tester With Six Test Station


    Standard:

    IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes - Part 1: General requirements ‘clause 23.4.

    UL817, VDE0620


    Application:

    This device is used for test the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets with power cord flexing tester.


    Test sample:

    Non-rewirable plugs and non-rewirable portable socket-outlets. Plug Socket Test Equipment


    Feature:

    The box type floor structure is adopted, provide 6 channels of low voltage and high current output.


    Parameters:

    Power supplyAC220V±5% 50Hz
    Output current0 ~ 40A is arbitrary adjustable
    Output voltage12V. Plug Socket Test Equipment
    Test station6 stations
    Ammeter Accuracy±1%
    Connecting wire7 PIN Aviation wire
    Environment temperature80~106kpa, 5~50℃, (20~90)%RH

    Quality AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box for sale
