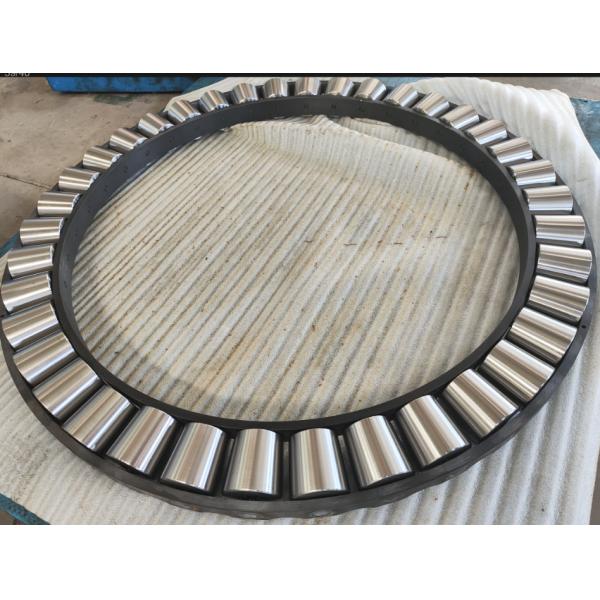

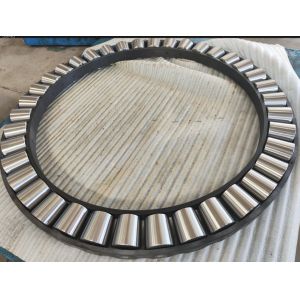

Single Cylindrical Big Thrust Roller Bearings And Slewing Ring
Bearing
1. Introduction of thrust bearing
Thrust cylindrical roller bearing and thrust tapered roller bearing
are rolling bearings used to withstand axial loads and are widely
used in mechanical engineering fields.
2. Introduction of thrust cylindrical roller bearings
Thrust cylindrical roller bearing is a kind of rolling bearing used
to bear axial load. It consists of an inner and outer cylinder, a
roller and a cage, wherein the rollers are cylindrical, they are
arranged along the axis, and roll on the inner and outer cylinders.
It can withstand large axial loads, and has high stiffness and load
capacity.
3. Thrust cylindrical roller bearing characteristics
The main characteristics of thrust cylindrical roller bearings are
that they can bear large axial loads, and have high stiffness and
load capacity. Compared with other types of thrust bearings, the
axial size of thrust cylindrical roller bearings is smaller, so it
is more convenient in terms of installation and maintenance. In
addition, the thrust cylindrical roller bearing also has higher
rotation accuracy and lower friction loss.
4. Thrust cylindrical roller bearing application
Thrust cylindrical roller bearings are widely used in various
industrial machinery and equipment, such as steel, mining, lifting,
power, water pumps and ships. They play an important role in large
mechanical equipment, such as generators, hydraulic machines, wind
turbines, ship propellers and so on.
5. Parameter table of thrust cylindrical roller bearing and thrust
tapered roller bearing:
(1) Parameter table 1
| Parameter | Thrust cylindrical roller bearing | Thrust tapered roller bearing |
| Rolling element shape | Cylindrical | Conical |
| Inside and outside circular shape | Cylindrical surface | Conical surface |
| Bear axial load | √ | √ |
| Bear radial load | × | √ |
| The cone Angle is adjustable | × | √ |
| The axial size is small | √ | × |
| Scope of application | Heavy machine tools, metallurgical equipment, mining machinery, etc | Steel, mining, lifting, electricity, water pumps and ships |
(2) Parameter table 2
| Parameter | Description |
| Axial dynamic load capacity | 1,000 ~ 3,000,000 N |
| Axial static load capacity | 2,000 ~ 6,000,000 N |
| Maximum speed | 500 ~ 2,000 rpm |
| Maximum temperature | 200 ~ 300 ℃ |
| Precision class | P0, P6, P5, P4 |
| Size range | Inside diameter 20 ~ 1,200 mm,Outside diameter 40 ~ 1,500 mm |
Single Cylindrical Big Thrust Roller Bearings And Slewing Ring
Bearing
Single Cylindrical Big Thrust Roller Bearings And Slewing Ring
Bearing
Single Cylindrical Big Thrust Roller Bearings And Slewing Ring
Bearing
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery,
construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management
certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit
when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong
we will provide the technical advice and find solution immediately.
For those wearing parts we guarantee high quality parts for
long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and
parts maintenance if end user needs.
