    200M Deep Water Well Drilling Machines

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : XYC-200
    Certification : CE,ISO,TUV
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 14-30 days
    • Product Details
    • Company Profile

    200M Deep Water Well Drilling Machines

    XYC-200 vehicle-mounted hydraulic water well drilling rig is a versatile and efficient tool designed to perform a variety of drilling tasks, including water well drilling, exploration drilling, and geotechnical drilling. Its compact design, high-performance mud pump, shifting device, and hydraulic folding mast make it easy to use and transport on different job sites. The rig can be used for a variety of applications, including exploring soil and rock conditions for construction projects, drilling holes in concrete structures, installing monitoring wells on river embankments, grouting subgrade and other underground structures, drilling and injecting grout directly into formations, drilling water wells for domestic or commercial use, and drilling boreholes for geothermal heating and cooling systems. Overall, the XYC-200 vehicle-mounted hydraulic water well drilling rig is a valuable asset for any drilling operation that requires versatility, efficiency, and ease of use.


    Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig
    Drilling depth(m)30-200
    Drilling diameter(mm)300-75
    Drilling angel(mm)90-75
    Spindle rotating speed(r/min)64/128/287/557
    Spindle stroke(mm)450
    Main hoisting capacity (single line)(Kg)1600
    Main hoisting line capacity (m)35
    Hoisting speed(r/s)17/35/75/151
    Wireline diameter(mm)12.5
    Mast height(mm)7000
    Mast effective height(mm)6500
    Kelly/active pipe(mm)59*53
    Drill rod(mm)42/50/60
    Drill rig weight(kg)1150
    Power unitModelZS1115 diesel engine
    Rated power14.7kw/2200rpm
    BW-160 mud pumpRated flow(l/min)160
    Rated pressure(mpa)1.3
    Driving power(kw)5.15
    Main machine weight (kg)190
    Dimension(mm)1110*725*965

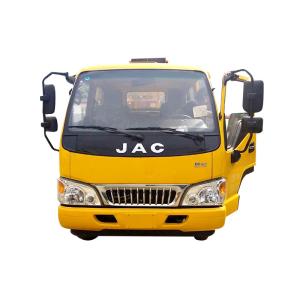

    Chassislight truck(Pictures of vehicle-mounted drilling rigs for reference only)
