Production Description
Main specifications of SINOTRUK HOHAN 6X4 DUMP TRUCK 310 HP FOR
SALE
| Item | SINOTRUK HOHAN 6X4 DUMP TRUCK 310 HP FOR SALE |
| Chassis model | ZZ3255N3843 2018 New Truck |
| Driving type | Left hand drive (LHD) |
| Color | Optional (yellow, red, black, white, blue, grey, green) |
| Engine | Model | SINOTRUK brand, MC07.31.50,310hp, Euro II, Diesel. |
| Type | Six cylinders inline, water cooling, 4 stroke, supercharge
intercooler,high pressure common rail |
| Engine net weight (kg) | 640 |
| Rated Power (kw/rpm) | 228/2200 |
| Maximum Torque (Nm) | 1230N.m |
| Maximum Torque speed | 1200~1800RPM |
| Compression ratio | 16.5:01 |
| Bore X Stroke | 126x130mm |
| Displacement L | 6.87 |
| Lgnition order | 1-5-3-6-2-4 |
| Cabin | H16, German BENZ Technology, extended cab with one sleeper (berth),
air-conditioner, damping comfortable seat, dash board with LCD,
MP3, safety belts, curtain, electrical window regulator, adjustable
steering wheel, air horn, with 4-point support fully floating
suspension and shock absorber devices etc. |
| Transmission | HW19710, 10 F and 2 R, manual. Transmission with main and auxiliary transmission structure, main
transmission with double counter shaft, auxiliary transmission with
planetary reduction. |
| Front Axle | HF7, rated load 7000kg, drum brake. |
| Rear Axles | ST16, rated load 16000kgx2, Speed ratio: 5.73 |
| Steering | D50, power steering with hydraulic system. |
| Brake system | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air
operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Tires | 12R22.5 Steel radial tires, plus one spare tire (totally 10 units) |
| Max. speed | 75km/h |
| Fuel tank | 300L volume |
| Lifting Model | Ventral Lifting, strengthen T model |
| Carriage box volume | 5600x 2300x1150 mm (14.81M3) Thickness: Floor 8mm, side 6mm |
| External dimension | 8450x 2496x3500 mm |
| Loading Capacity | 30T |

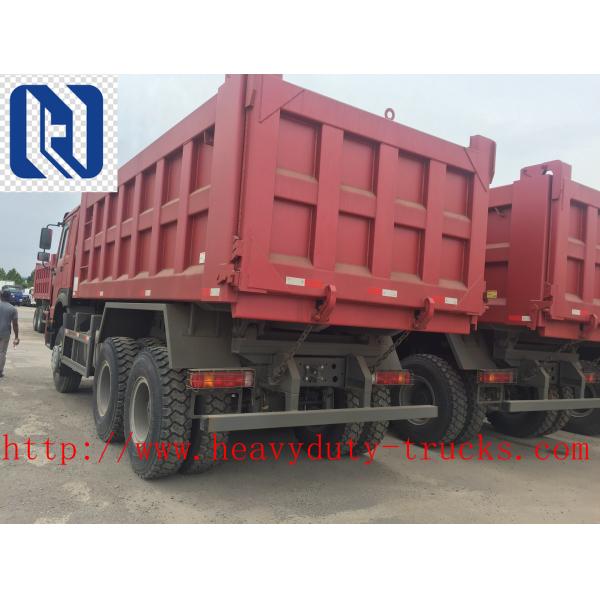

Photos of SINOTRUK HOHAN 6X4 DUMP TRUCK 310 HP FOR SALE
2. Packing & Shipping
Making wax before loading on ship, trucks will be transported by
RORO ship, bulk Ship, container or frame.
3. Our services
Our service is aim to continually improve customers’ satisfaction.
| ü We can offer you the high quality trucks and spare parts at
reasonable price. |
| ü We own strong teams in technology that could help you solve problem
quickly. |
| ü We can do the designs according to your special requirement and
ideas. |
| ü We also supply spare parts (original, OEM, and replacement) for all
types of trucks |
| ü We cooperate with efficient logistics which ensure the goods reach
you timely and safely. |
| ü We are rich experienced team and could provide good after-sales
service. |
4. Company Information
We Sino heavy machinery CO., LTD established in 1990 which engages
in SINOTRUK trucks and spare parts for more than 15 years. We are
authorized distributor by SINOTRUK factory exporting dump truck,
tractor truck, cargo truck, concrete mixer truck, tank truck,
garbage truck, semi-trailer, excavator, truck crane and other heavy
duty equipments. Meanwhile, we are the Spare Parts Center of our
SINOTRUK factory that is responsible for providing original truck
spare parts for all SINOTRUK 4S shopsin domestic and foreign
markets.
After long time development, our yearly sales volume reaches eighty
million. We have successfully exported trucks and spare parts to
Nigeria, Angola, Ghana, Libya, Cameroon, the Guinea, Congo, Mali,
Tanzania, Ethiopia, Algeria, Sudanand other African countries;
Peru, Chile, Venezuela, Colombia, brazil and Argentina in south
America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand,
Philippines, Malaysia, Indonesia, Pakistan, Brunei, Bangladesh etc.
that almost fifty countries.
We own strong teams in technical and sales field, so that we could
deal with all kinds of truck problems with shortest time for our
client.
Hope to establish good and long-term business relationship with
you.
