Transparent Shell (1*1)
No.19014-B
This mold is built on a standard GCI3540.90120100 mold base and
follows the LKM mold
standard. It has a length of 400mm, a width of 400mm, and a height
of 386mm. Additionally,
the mold features slide and 8 lifters, and uses a side gate (the
pin point gate turns to the
side gate). This is a two-plate mold, which means that it has two
main plates that separate
to release the molded part.
The cold runner system in its design minimizes gate marks, while
the surface is mirror EDM with
VDI 10# to achieve high glossiness and low roughness. As a result,
the molded part is free of
sticking.
| Steel of injection/runner |
| Harden (1*1/S136) |
The core, sub-inserts, movable inserts, ejector rod, and sprue bush
are manufactured using steel
with a hardness greater than 40HRC, which undergoes a surface
hardening process. This results
in a mold with high hardness and excellent anti-wear performance,
with a tool life of up to 500K
shots and stable cavity pressure. The molded part has uniform
thickness, a smooth surface, and
clear details, without any gas marks, bubbles, or flow marks.The part material is PC, with the size
of 130.92 X 165.60 X 62.06mm, and the weight of 10g

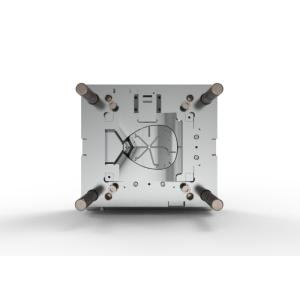

Display diagram
